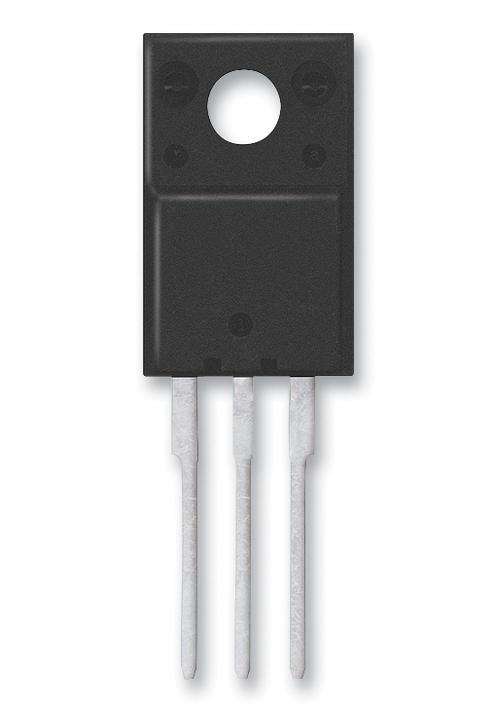

ONSEMI FDPF10N60ZUT High Voltage N-Channel MOSFET
FDPF10N60ZUT is a high-voltage N-channel MOSFET part of the Ultra FRFET™ family, rated for 600 V and capable of handling 9 A. It features low on-resistance of approximately 650 mΩ at Vgs = 10 V, low gate charge of 31 nC, and low output capacitance of 15 pF, making it ideal for switching power converters, LCD/LED displays, uninterruptible power supplies, and lighting applications. Its avalanche capabilities, enhanced dv/dt immunity, and RoHS compliance ensure high reliability and performance in demanding electronic systems.
ONSEMI FDPF10N60ZUT High Voltage N-Channel MOSFET Specifications:
- Drain to Source Voltage: 600 V
- Gate to Source Voltage: +30 V
- Continuous Drain Current: 9 A
- Pulsed Drain Current: 36 A
- Avalanche Energy: 100 mJ
- Repetitive Avalanche Energy: 18 mJ
- Peak Diode Recovery dv/dt: 20 V/μs
- Power Dissipation: 7 W
- Operating Temperature Range: -55°C to +150°C
- Dimensions: 18.07 mm x 16.67 mm x 3.40 mm approx.
- Maximum Junction Temperature: 150°C
- Thermal Resistance, Junction to Case: 3.0°C/W
- Thermal Resistance, Junction to Ambient: 62.5°C/W
- Gate Threshold Voltage: 3.0 - 5.0 V
- On Resistance: 0.65 - 0.80 Ω at Vgs = 10 V
- Input Capacitance: 1490 - 1980 pF
- Output Capacitance: 230 - 240 pF
- Reverse Transfer Capacitance: 15 - 25 pF
- Total Gate Charge: 31 - 40 nC
- Switching Delay Time: 25 - 60 ns
- Maximum Reverse Recovery Time: 45 ns
Buy the Buy ON Semiconductor FDPF10N60ZUT Part Number FDPF10N60ZUT Online
Purchase the ON Semiconductor FDPF10N60ZUT online today to ensure your electronic systems benefit from a high-voltage N-channel MOSFET with reliable performance, low on-resistance, and excellent avalanche energy handling. This device is perfect for power conversion, display backlighting, and uninterruptible power supplies, providing fast switching, low gate charge, and superior avalanche robustness. Ordering online guarantees genuine products with full traceability, quick delivery, and access to the latest technical support, helping you meet rigorous quality and performance standards efficiently.
Buy ON Semiconductor FDPF10N60ZUT now and experience unmatched reliability and high-voltage switching performance in your power electronics.
Frequently Asked Questions
Where can I buy ONSEMI FDPF10N60ZUT?
You can click on the BUY or RFQ button to purchase FDPF10N60ZUT from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDPF10N60ZUT?
You can download the FDPF10N60ZUT datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDPF10N60ZUT?
ONSEMI
