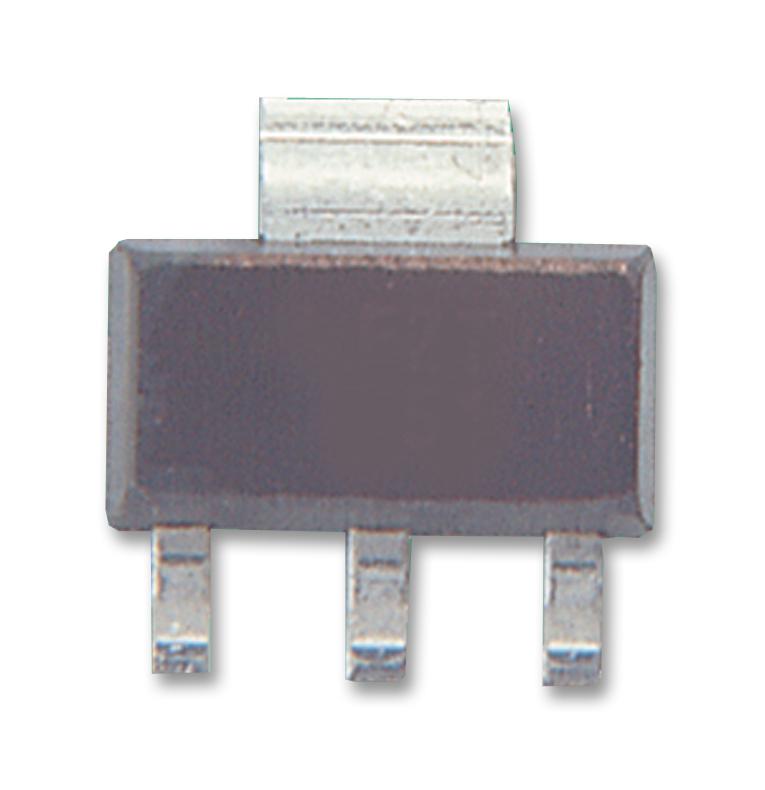

ONSEMI FDT86113LZ Power MOSFET
The FDT86113LZ is an N-channel logic level MOSFET developed using PowerTrench® technology, offering low on-resistance and superior switching. It features an integrated G-S Zener diode for enhanced ESD protection and can handle high power and current in a surface-mount package. Suitable for DC-DC switching applications, it is rigorously tested and complies with RoHS standards, with an ESD protection level exceeding 3 kV. Ideal for high-performance power management in compact, efficient designs, its specifications include maximum drain-to-source voltage of 100 V and continuous drain current of 3.3 A, making it a reliable choice for modern electronic systems.
ONSEMI FDT86113LZ Power MOSFET Specifications:
- Drain-to-Source Voltage: 100 V
- Gate-to-Source Voltage: ±20 V
- Continuous Drain Current: 3.3 A
- Pulsed Drain Current: 12 A
- Single Pulse Avalanche Energy: 9 mJ
- Power Dissipation at 25°C: 22 W
- Junction Operating Temp Range: -55°C to +150°C
- Thermal Resistance Junction to Case: 12°C/W
- Thermal Resistance Junction to Ambient: 55°C/W
- Gate Threshold Voltage: 1.0–2.5 V
- Gate Charge: 23–68 nC
- Input Capacitance: 234–315 pF
- Output Capacitance: 46–65 pF
- Total Gate Charge: 44–68 nC
- Body Diode Forward Voltage: 0.86 V
- Reverse Recovery Time: 31–49 ns
- Maximum Continuous Drain Current vs Case Temp: data available up to 150°C
- ESD Protection Level: > 3 kV HBM
- Package: SOT-223
- Device Marking: FDT86113LZ
- Operating and Storage Temperature Range: -55°C to +150°C
Buy the Fairchild FDT86113LZ – Reliable PowerTrench MOSFET for Industrial Applications
Purchase the Fairchild FDT86113LZ MOSFET online today to ensure optimal performance for your power management and switching needs. Engineered with PowerTrench® technology, this N-channel device provides low Rds(on), high current capacity, and robust ESD protection exceeding 3 kV. Its compact SOT-223 package makes it ideal for space-constrained designs in industrial electronics and power supply circuits. With rigorous testing and RoHS compliance, ordering online guarantees authentic, high-quality components delivered promptly, helping you streamline your assembly process and improve device reliability in demanding applications.
Order your Fairchild FDT86113LZ series high-performance MOSFET today and enhance your power switching projects with reliable, low-resistance components.
Frequently Asked Questions
Where can I buy ONSEMI FDT86113LZ?
You can click on the BUY or RFQ button to purchase FDT86113LZ from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDT86113LZ?
You can download the FDT86113LZ datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDT86113LZ?
ONSEMI
