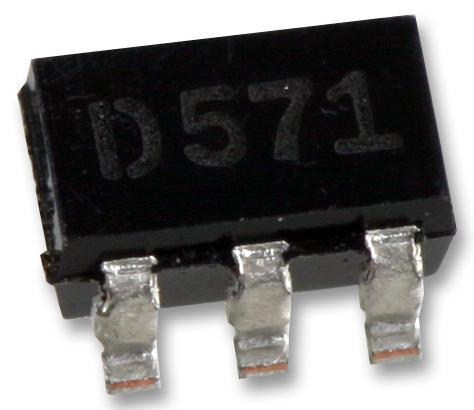

ONSEMI NCP1251BSN65T1G PWM Controller
The NCP1251 is a compact, high-performance current-mode PWM controller designed for offline power supplies such as adapters and TVs. Operating up to 28 V, it features fixed switching frequencies of 65 or 100 kHz, internal ramp compensation, and frequency foldback down to 26 kHz to optimize efficiency at light loads. Integrated over power protection (OPP) and over voltage protection (OVP) enhance robustness, while auto-recovery and latch options provide flexible fault handling. Its low startup current, EMI jittering, and regulation features make it suitable for low standby power and energy-efficient applications.
ONSEMI NCP1251BSN65T1G PWM Controller Specifications:
- Supply Voltage Range: up to 28 V
- Switching Frequencies: 65 kHz, 100 kHz
- Frequency Foldback: down to 26 kHz
- Peak Current Mode Control
- Internal Ramp Compensation
- Internal Soft-Start: 4 ms
- Over Power Protection: integrated, adjustable via external resistors
- Over Voltage Protection: latched or auto-recovery options
- Auto-recovery or Latched Short-Circuit Protection
- Driver Output Current: +300 mA / -500 mA
- Standby Power Consumption: <100 mW at high line
- Operating Voltage (Vcc): up to 28 V
- Temperature Range: -40°C to +125°C
- ESD Resistance: 2 kV (HBM)
Buy the ON Semiconductor NCP1251 – Reliable PWM for Industrial Applications
Enhance your power supply designs with the NCP1251 PWM controller, offering fixed frequency operation, internal protection features, and foldback control for optimal efficiency. Perfect for low-cost, high-performance offline adapters and energy-efficient applications. Its integrated over power and voltage protections ensure robustness, while low standby power consumption minimizes energy use. Easy to implement with adjustable parameters, it supports reliable operation across a wide temperature range. Upgrade your designs today by purchasing online and benefit from proven performance and flexible fault management.
Buy ON Semiconductor NCP1251 now and experience unmatched reliability and performance in your energy-efficient power supplies.
Frequently Asked Questions
Where can I buy ONSEMI NCP1251BSN65T1G?
You can click on the BUY or RFQ button to purchase NCP1251BSN65T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP1251BSN65T1G?
You can download the NCP1251BSN65T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP1251BSN65T1G?
ONSEMI
