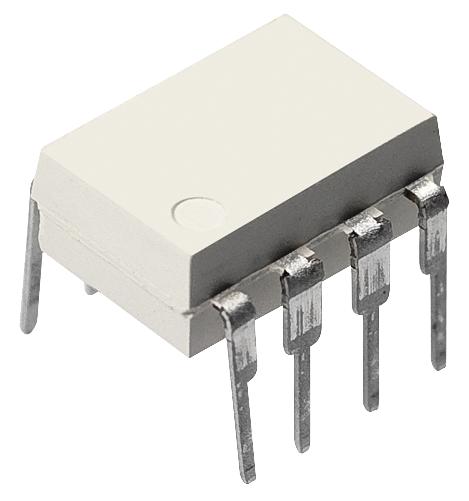

ONSEMI FOD3182V High-Speed MOSFET Driver
The FOD3182V is a high-speed MOSFET gate driver optocoupler suitable for high-frequency power switching applications. It features an aluminum gallium arsenide (AlGaAs) LED, optically coupled to CMOS detector with integrated PMOS and NMOS transistors, enabling fast transition times and low power dissipation. Designed for plasma display panels, DC-DC converters, and high-performance power supplies, it offers high noise immunity, undervoltage lockout with hysteresis, peak output current of 3A, a switching speed up to 250kHz, and insulation ratings compliant with safety standards. Compact 8-pin package, wide operating voltage range, minimum creepage of 8mm, and insulation thickness of 0.5mm ensure reliable operation in various power management and consumer electronics applications.
ONSEMI FOD3182V High-Speed MOSFET Driver Specifications:
- Maximum Isolation Voltage: 5,000Vrms
- Maximum Switching Speed: 250kHz
- Peak Output Current: 3A
- Propagation Delay: 210ns max.
- Rise/Fall Time: 65ns max.
- Common Mode Rejection: 50kV/µs (Typ.)
- Operating Temperature Range: -40°C to +100°C
- Supply Voltage Range: 10V to 30V
- Insulation Thickness: 0.5mm
- Minimum Creepage Distance: 8mm
- Minimum Clearance Distance: 10mm (option T or TS: 16mm)
- Peak Working Insulation Voltage: 1414Vpeak
- Package Type: 8-pin SOIC
- Input Forward Voltage: 1.43V at 10mA
- Input Current (ON): 10-16mA
- Output Voltage: 0-30V
- Output Power: 250mW
- Operating Temperature: -40°C to +100°C
- For Rated Mains Voltage: <150V, <300V, <450V, <600V, <1000Vrms
Buy the ON Semiconductor FOD3182V – Reliable High-Speed MOSFET Driver for Industrial Applications
Order the ON Semiconductor FOD3182V online today to enhance your power management systems. This compact optocoupler features high-speed switching up to 250kHz, peak current of 3A, and exceptional noise immunity. Designed for plasma display panels, DC-DC converters, and power supplies, it offers UVLO with hysteresis and high insulation ratings for safe, reliable operation. Its 8-pin package simplifies integration into demanding applications, ensuring you get optimal performance with maximum safety and efficiency. Purchase now for fast delivery and superior product reliability.
Buy ON Semiconductor FOD3182V now and experience unmatched reliability and performance in high-frequency power switching.
Frequently Asked Questions
Where can I buy ONSEMI FOD3182V?
You can click on the BUY or RFQ button to purchase FOD3182V from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD3182V?
You can download the FOD3182V datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD3182V?
ONSEMI
