ONSEMI FOD817BS High-Temperature Optocoupler
The FOD817 Series consists of high-temperature 4-pin optocouplers with gallium arsenide infrared emitting diodes driving silicon phototransistors in compact dual in-line packages. These optocouplers feature high input-output isolation voltages of 5000Vrms, making them ideal for digital logic interfaces, power supply regulation, and microprocessor inputs. Their broad current transfer ratios (50-600%) and high collector-emitter voltage (70V) ensure reliable performance in various industrial and communication applications, with excellent thermal characteristics and UID approvals supporting Pb-free reflow soldering.
ONSEMI FOD817BS High-Temperature Optocoupler Specifications:
- Package Type: 4-pin dual in-line
- Operating Temperature: -55°C to +110°C
- Storage Temperature: -55°C to +150°C
- Collector-Emitter Voltage: 70 V
- Collector Power Dissipation: 150 mW
- Undervoltage: 6 V (Reverse Voltage rating)
- Isolation Voltage: 5000 Vrms
- Input Forward Current: 50 mA
- Collector Current: 50 mA
- Junction Temperature: Max 125°C
- Response Time: Rise 18 µs, Fall 18 µs
- CTR Range: 50-600% depending on model
- UL, C-UL, VDE approved, Pb-free reflow compatible

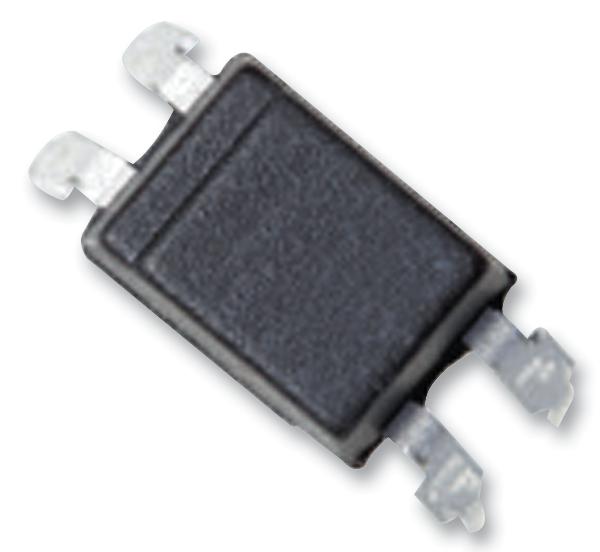

Buy the Fairchild Series FOD817VDE: High-Temperature 4-Pin Optocoupler FOD817BS
Purchase the Fairchild Series FOD817BS high-temperature 4-pin optocoupler online and enhance your electronic systems with superior electrical isolation, broad CTR range, and robust performance. Engineered for high reliability, these optocouplers are ideal for power supply regulation, digital logic inputs, and microprocessor interfaces. Enjoy quick delivery and full manufacturer warranty by buying directly from authorized distributors. Ensure your projects meet industry standards for safety and efficiency with this proven, high-voltage isolation component, perfect for industrial and communication applications.
Order your Fairchild Series FOD817BS high-temperature 4-pin optocoupler today and ensure your projects benefit from reliable, high-voltage isolation and excellent thermal performance.
Frequently Asked Questions
Where can I buy ONSEMI FOD817BS?
You can click on the BUY or RFQ button to purchase FOD817BS from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD817BS?
You can download the FOD817BS datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD817BS?
ONSEMI
