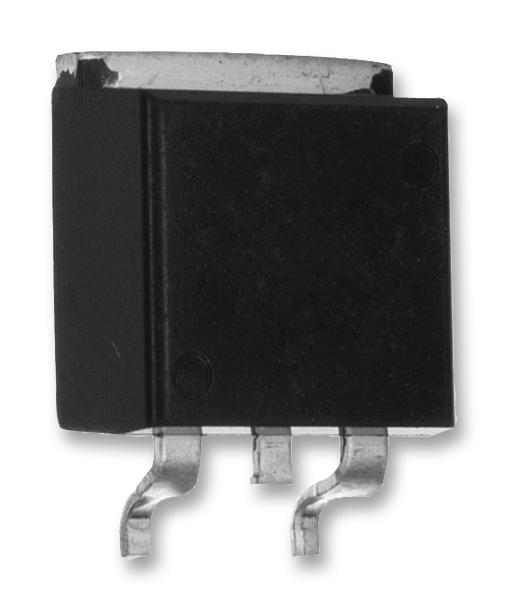

ONSEMI LP2950CDT33RKG Voltage Regulator
The LP2950 and LP2951 are ultra-low power voltage regulators designed to provide proper regulation with minimal input-to-output voltage differential. They feature a quiescent current of only 75 µA and can supply over 100 mA of output current. These regulators include internal current and thermal limiting protection, with configurable output voltages ranging from 1.25 V to 29 V, depending on the version. The LP2951 offers additional features like error signaling, programmable output, and shutdown control for versatile applications in battery-powered, industrial, and consumer electronics, ensuring reliable and efficient voltage regulation.
ONSEMI LP2950CDT33RKG Voltage Regulator Specifications:
- Output Voltage Range: 1.25 V to 29 V (programmable), fixed options at 3.0 V, 3.3 V, 5.0 V
- Input Voltage: Up to 30 V, transient voltage up to 32 V
- Quiescent Current: 75 µA
- Output Current: Up to 100 mA
- Dropout Voltage: 50 mV at 100 mA, 380 mV at 100 µA
- Line Regulation: 0.04% to 0.20%
- Load Regulation: 0.05% to 0.20%
- Thermal Resistance Junction-to-Ambient: 160 to 240 °C/W depending on package
- Stability requires a 1.0 µF capacitor at output
- Package types: TO-92, SOIC-8, Micro8, DPAK, PDIP-8
- Error signaling output and shutdown control
- Pb-Free, RoHS compliant, AEC-Q100 qualified
Buy the ON Semiconductor LP2950U+2013 Reliable Voltage Regulator for Industrial Applications
Purchase the ON Semiconductor LP2950 voltage regulator online today and experience efficient power management with ultra-low quiescent current, wide input voltage capability, and configurable output voltages. This reliable regulator features thermal and current limiting protections, ensuring safe and durable operation in industrial, automotive, and consumer electronics. The LP2950 is easy to implement with minimal external components, making it ideal for battery-powered systems that require extended operation. Order now to enhance your electronic designs with a high-quality, RoHS-compliant voltage regulation solution designed for long-term reliability and performance.
Get ON Semiconductor LP2950 today—built for precision, low power consumption, and long-lasting durability in industrial and consumer electronics.
Frequently Asked Questions
Where can I buy ONSEMI LP2950CDT33RKG?
You can click on the BUY or RFQ button to purchase LP2950CDT33RKG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LP2950CDT33RKG?
You can download the LP2950CDT33RKG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LP2950CDT33RKG?
ONSEMI
