ONSEMI FPF1007 Load Switch
The FPF1007 is a low Rds(on) P-Channel MOSFET load switch designed for efficient power management in portable devices. It features an input voltage range from 1.2 V to 5.5 V, low quiescent current below 10 μA, and an on-resistance typically around 40 mΩ at 3.3 V. The switch offers selectable turn-on rise times (10 μs, 80 μs, 1 ms) for transient current control, high ESD protection (>8 kV HBM, 2 kV CDM), and an output discharge function for safer load switching. Its active-high control input supports direct low-voltage logic interface, making it ideal for mobile applications, PDAs, and portable electronics.
ONSEMI FPF1007 Load Switch Specifications:
- Input Voltage Range: 1.2 V to 5.5 V
- Maximum Continuous Switch Current: 1.5 A
- On-Resistance: Typically 40 mΩ at 3.3 V
- Turn-On Rise Time Options: 10 μs / 80 μs / 1 ms
- Quiescent Current: Less than 10 μA at 3.3 V
- ESD Protection: >8 kV HBM, 2 kV CDM
- Power Dissipation at 25°C: 1.2 W
- Operating Temperature Range: -40°C to 85°C
- Package Type: WDFN 2x2, 0.65P
- Control Input: Active-high logic
- Output Discharge Function: Yes
- Gate Threshold Voltage: Vgs(th): -0.5 V to -1 V
- Thermal Resistance, Junction to Ambient: 86°C/W
- Voltage Drop (Ron): Typically 40 mΩ at 3.3 V
- Application Suitability: Portable electronics, PDAs, cell phones, GPS devices

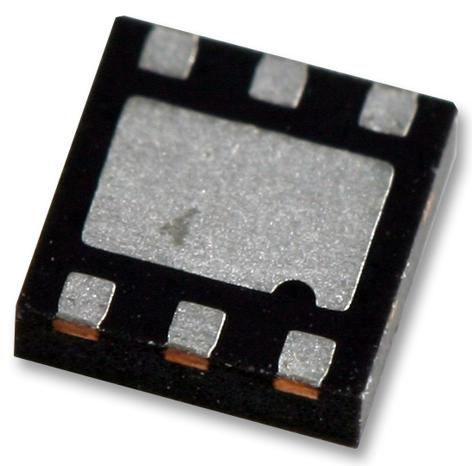

Buy the ONSEMi FPF1007 U–2013 Reliable Load Switch for Industrial Applications
Purchase the ONSEMi FPF1007 load switch online today and benefit from its low on-resistance, adjustable turn-on times, high ESD protection, and low quiescent current. Designed for portable electronics, PDA devices, GPS units, and other mobile applications, this power switch provides efficient, reliable power management. The device's active-high control input allows easy integration with low-voltage control systems, while its output discharge feature ensures safe load switching. Get the best performance for your portable device power solutions with ONSEMi's proven load switching technology.
Buy ONSEMi FPF1007 now and experience unmatched reliability and low-voltage power switching for portable and industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI FPF1007?
You can click on the BUY or RFQ button to purchase FPF1007 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FPF1007?
You can download the FPF1007 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FPF1007?
ONSEMI
