ONSEMI FXL5T244BQX Voltage Translator
The FXL5T244 is a configurable dual-voltage-supply transverter designed for unidirectional voltage translation between levels ranging from 1.1V to 3.6V. It features level tracking inputs and outputs, 3-STATE outputs, and power-down protection, making it suitable for mixed logic systems requiring flexible voltage interfacing. The device remains in a high-impedance state until active power levels are detected and supports non-preferential power-up sequencing. Packaged in a compact 14-terminal DQFN, it offers high ESD protection and reliable operation across a broad temperature range, ensuring durability in industrial and consumer electronics applications.
ONSEMI FXL5T244BQX Voltage Translator Specifications:
- Voltage translation range: 1.1V to 3.6V
- Inputs and outputs track respective supply voltages
- Power supply voltage: Veo and Veco can be 1.1V to 3.6V
- Outputs remain in 3-STATE until active Vcc levels
- Power-down control circuits; disables outputs if either supply is removed

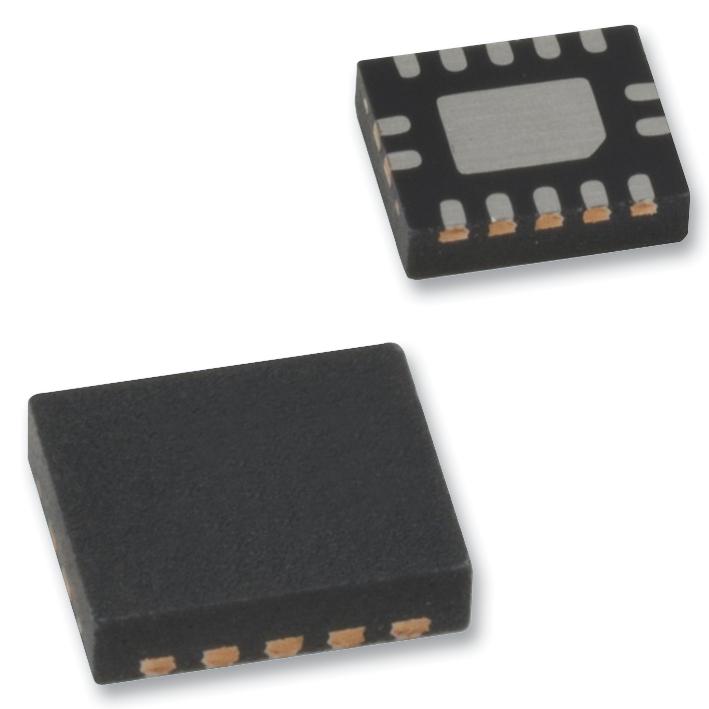

- Package: 14-terminal DQFN (2.5mm x 3.0mm)
- ESD protection: >4kV HBM, >8kV HBM I/O, 1kV CDM, 200V MM
- Operating temperature: -40°C to +85°C
- Maximum supply voltages: Veo and Veco up to +4.6V
- Input voltage: 0V to 3.6V
- Output voltage: -0.5V to +4.6V
- Input leakage current: ±10.0 μA
- Output enable (OE) active HIGH disables outputs
- Propagation delay for enable/disable: approximately 150-220 ns depending on voltage levels
Buy the Buy ON Semiconductor FXL5T244 Part Number FXL5T244BQX Online
Purchase the ON Semiconductor FXL5T244BQX voltage translator today and experience seamless unidirectional voltage translation between 1.1V to 3.6V levels. Its configurable design allows inputs and outputs to track respective supply voltages, offering flexible integration in mixed-signal circuits. The device supports power-down protection, remains in high-impedance state until powered, and features a compact DQFN package with excellent ESD protection. Perfect for industrial, consumer, and automotive electronics requiring reliable and precise logic level shifting.
Get ON Semiconductor FXL5T244BQX today—designed for flexible voltage translation with configurable power supplies and robust protection for reliable performance.
Frequently Asked Questions
Where can I buy ONSEMI FXL5T244BQX?
You can click on the BUY or RFQ button to purchase FXL5T244BQX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FXL5T244BQX?
You can download the FXL5T244BQX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FXL5T244BQX?
ONSEMI
