ONSEMI MC34064D5R2G Undervoltage Sensing Circuit
The MC34064D-5R2G is an under-voltage sensing circuit designed as a reset controller for microprocessor-based systems. It provides an economical solution for low voltage detection with a single external resistor, featuring a bandgap reference and a comparator with precise thresholds and built-in hysteresis to prevent unreliable reset signals. The open-collector reset output can sink in excess of 10mA, and the device operates reliably down to 1V input voltage with low standby current. It includes a temperature-compensated reference, internal clamp diode for discharging delay capacitors, and ensures stable operation over temperature variations. Suitable for applications in sensing, instrumentation, automation, process control, and test & measurement.
ONSEMI MC34064D5R2G Undervoltage Sensing Circuit Specifications:
- Maximum Power Dissipation: 625 mW (P suffix), 520 mW (DM suffix), 240 mW (S suffix)
- Operating Voltage Range: 1.0 V to 7 V
- Reset Output Capable of Sinking Over 10 mA
- Threshold Voltage at 25°C: 4.6 V (typical)
- Hysteresis: 0.02 V (typical)
- Input Voltage Thresholds: High at 4.61 V, Low at 4.59 V
- Temperature Range: -40°C to +125°C
- Operating Ambient Temperature: 40°C to +125°C for NCV device, 0°C to +70°C for MC device
- Package Options: SOIC-8, TO-92, TSOP-5, Micro8
- Built-in Tri-Mterminated Bandgap Reference
- Internal Clamp Diode for Discharging Delay Capacitors
- Open Collector Reset Output Sinking Capability: >10mA
- Low Standby Current, Suitable for Automotive and Industrial Applications
- Pb-Free, RoHS Compliant

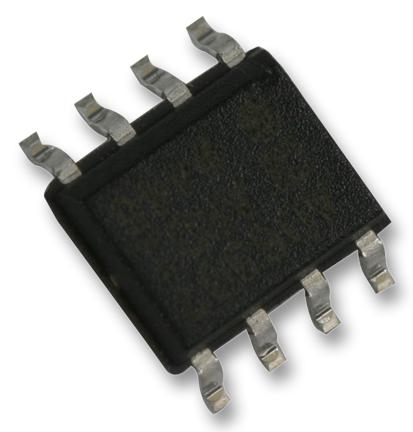

Buy the ON Semiconductor Series MC34064 Voltage Sensor: MC34064D5R2G
Purchase the ON Semiconductor MC34064D5R2G undervoltage sensing circuit online today. This device offers precise thresholds, hysteresis, and a robust reset controller ideal for microprocessor-based applications. Its low standby current and temperature-compensated reference ensure reliable operation across varying conditions. Suitable for sensing, instrumentation, automation, and industrial control systems, it guarantees stable performance over a wide temperature range. Order now and enhance your system’s safety and reliability with proven, high-quality components.
Buy ON Semiconductor MC34064D5R2G now and experience unmatched reliability and performance in low voltage detection for microprocessor systems.
Frequently Asked Questions
Where can I buy ONSEMI MC34064D5R2G?
You can click on the BUY or RFQ button to purchase MC34064D5R2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC34064D5R2G?
You can download the MC34064D5R2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC34064D5R2G?
ONSEMI
