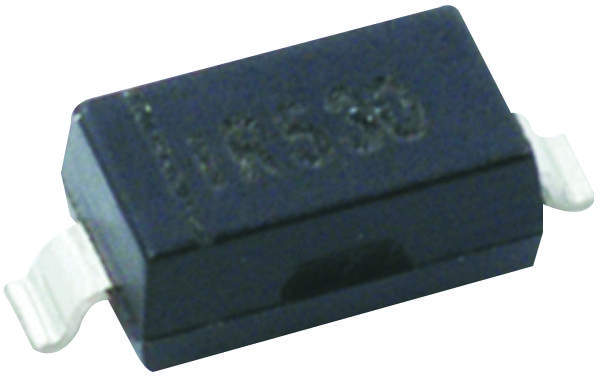

ONSEMI MMSZ3V6T1G Voltage Regulation Diode
The MMSZ3V6T1G is a surface-mounted Zener diode designed for voltage regulation and overvoltage protection in compact electronic circuits. Featuring a small SOD323F package, it offers a nominal Zener voltage of 3.6V with a peak repetitive reverse power dissipation of 40 W, making it suitable for applications requiring reliable voltage stabilization. This diode is qualified under automotive standards (AEC-Q101) and provides low differential resistance, ensuring efficient performance in various industrial and consumer electronic devices. Its small form factor simplifies mounting in space-constrained environments, enhancing system reliability and performance.
ONSEMI MMSZ3V6T1G Voltage Regulation Diode Specifications:
- Package: SOD323F (SC-90) surface-mounted package
- Nominal Zener Voltage: 3.6V
- Peak Repetitive Reverse Power Dissipation: 40 W
- Maximum Forward Voltage: 1 V at 100 mA
- Peak Reverse Current: 5 mA (at Iz=5mA) with minimum 3V voltage
- Temperature Range: -65°C to +150°C
- Maximum Junction Temperature: 150°C
- Storage Temperature: -65°C to +150°C
- Peak Forward Current: 250 mA
- Thermal Resistance: Junction to Ambient up to 230 K/W
- Qualifies under automotive standard: AEC-Q101
- Physical dimensions: 2.4 mm x 1.25 mm x 1.1 mm approximately
Buy the NXP MMSZ3V6T1G – Reliable Voltage Regulation for Industrial Applications
Enhance your electronic designs with the NXP MMSZ3V6T1G high-performance Zener diode. Its small size, 3.6V voltage, and 40 W peak power make it ideal for voltage regulation, overvoltage protection, and stabilization in automotive and industrial applications. The SOD323F package ensures easy surface mounting, saving space and simplifying assembly. Qualified under automotive standards, it offers reliable operation across a wide temperature range and ensures system safety and efficiency. Purchase online today to incorporate trusted, compact voltage regulation into your next project.
Order your NXP MMSZ3V6T1G series small surface-mounted Zener diode today and ensure dependable voltage stabilization in your industrial and automotive projects.
Frequently Asked Questions
Where can I buy ONSEMI MMSZ3V6T1G?
You can click on the BUY or RFQ button to purchase MMSZ3V6T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MMSZ3V6T1G?
You can download the MMSZ3V6T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MMSZ3V6T1G?
ONSEMI
