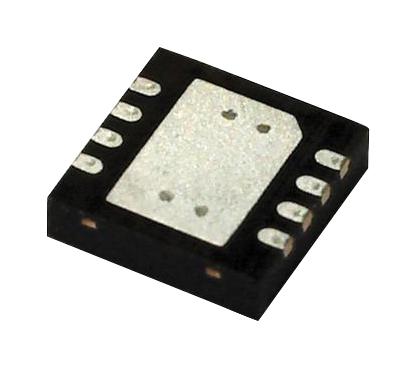

ONSEMI NCP3064BMNTXG Power Switching Regulator
The NCP3064 Series is a high-frequency, monolithic DC-DC switching regulator designed for versatile power conversion applications. It supports step-up, step-down, and inverting configurations with minimal external components. Features include an internal temperature-compensated reference, comparator, oscillator, active current limit, high current switch, and an ON/OFF shutdown function. Operating over 3.0 V to 40 V input, it delivers up to 1.5 A output current at 150 kHz, with excellent line and load regulation, cycle-by-cycle current limiting, thermal shutdown, and Pb-free packaging. Ideal for LED lighting, battery chargers, and industrial power supplies.
ONSEMI NCP3064BMNTXG Power Switching Regulator Specifications:
- Input Voltage Range: 3.0 V to 40 V
- Output Current: Up to 1.5 A
- Operating Frequency: 150 kHz
- Reference Accuracy: ±1.5%
- Thermal Shutdown Protection: Yes
- Cycle-by-Cycle Current Limiting: Yes
- ON/OFF Shut Down: Yes, logic controlled
- Switch Voltage: 40 V maximum collector-emitter
- Maximum Junction Temperature: +150°C
- Lead Temperature (Soldering): 260°C reflow
- Package Options: SOIC-8, PDIP-8, DFN-8, Pb-Free
- Efficiency: Up to 86% in Boost applications
- Ripple Voltage: Typically <300 mV in Buck configuration
- Built-in ESD and latch-up protection
- Housing: Compatible with standard surface-mount and through-hole assembly
Buy the ON Semiconductor NCP3064 – Reliable DC-DC Switching Regulator for Industrial Applications
Purchase the ON Semiconductor NCP3064 now to ensure your power conversion projects benefit from high efficiency, robust protection, and minimal external components. This versatile regulator supports step-up, step-down, and inverting configurations, with an output current up to 1.5 A, suitable for industrial, LED, and battery applications. Its internal features include thermal shutdown, cycle-by-cycle current limiting, and a low power standby mode. Designed for easy integration with Pb-free packages, this product guarantees long-lasting reliability and optimal performance in demanding environments.
Get ON Semiconductor NCP3064 today—built for high efficiency, reliable power regulation, perfect for industrial, LED lighting, and battery charging solutions.
Frequently Asked Questions
Where can I buy ONSEMI NCP3064BMNTXG?
You can click on the BUY or RFQ button to purchase NCP3064BMNTXG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP3064BMNTXG?
You can download the NCP3064BMNTXG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP3064BMNTXG?
ONSEMI
