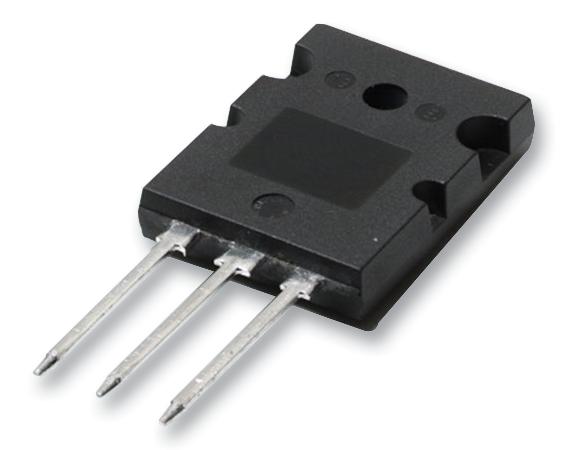

ONSEMI 2SC5200OTU NPN Silicon Transistor
The ONSEMI 2SC5200OTU is a high-performance NPN epitaxial silicon transistor suitable for a wide range of applications, including high-fidelity audio output amplifiers and general-purpose power amplification. It boasts a high current capability of 17A, a power dissipation of 150 watts, and a frequency of 30MHz. The transistor's wide SOA (Safe Operating Area) ensures reliable operation, while its excellent gain linearity contributes to low THD (Total Harmonic Distortion). It is complemented by the 2SA1943/FJL4215 and is available in TO-264, TO3P, TO220, and TO220F packages. Thermal and electrical Spice models are available for design and simulation purposes.
ONSEMI 2SC5200OTU NPN Silicon Transistor Specifications:
- BVCBO: 250V
- BVCEO: 250V
- BVEBO: 5V
- IC: 17A
- IB: 1.5A
- PD: 150W
- TJ: +150°C
- TSTG: -50 ~ +150°C
- RθJC: 0.83°C/W
- hFE1_min: 55
- hFE1_max: 160
- hFE2_min: 35
- hFE2_typ: 60
- VCE_sat: 0.4V
- VBE_on: 1.0V
- fT: 30MHz
- Cob: 200pF
Buy the 2SC5200OTU ONSEMI NPN Silicon Transistor | myMectronic
Purchase the ONSEMI 2SC5200OTU securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 2SC5200OTU?
You can click on the BUY or RFQ button to purchase 2SC5200OTU from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2SC5200OTU?
You can download the 2SC5200OTU datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2SC5200OTU?
ONSEMI
