ONSEMI LM317MDTG Adjustable Voltage Regulator
The LM317MDTG is an adjustable three-terminal positive linear voltage regulator capable of supplying over 500 mA with an output voltage range from 1.2 V to 37 V. It is easy to use, requiring only two external resistors to set the desired output voltage. The device features internal current limiting, thermal shutdown, and safe area compensation, making it highly reliable and resistant to damage. Suitable for local and on-card regulation applications, it can also be configured as an adjustable switching regulator, a programmable output regulator, or a precision current regulator by connecting a fixed resistor between the adjustment and output terminals. The regulator includes internal thermal overload protection, short-circuit current limiting, and safe-area protection for the output transistor. It allows floating operation for high-voltage applications and eliminates the need for multiple fixed-voltage components. This device is Pb-free and ideal for power management and various electronic applications.
ONSEMI LM317MDTG Adjustable Voltage Regulator Specifications:
- Output Current: >500 mA
- Output Voltage Range: 1.2 V to 37 V
- Internal Current Limiting
- Thermal Shutdown Protection
- Safe Area Compensation
- Floating Operation
- Pb-Free

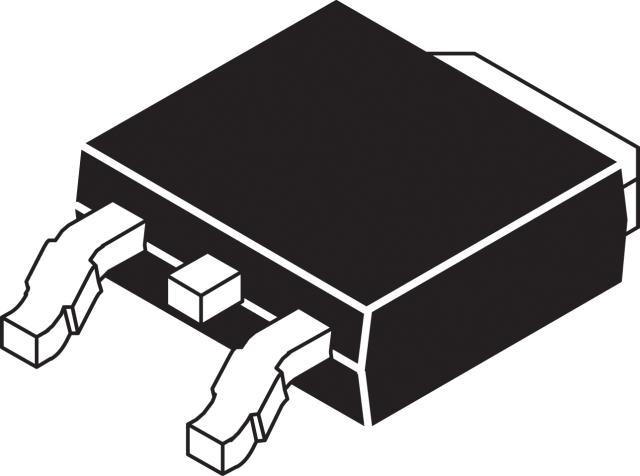

- Package: DPAK, Case 369C
- Maximum Input-Output Voltage Differential: 40 V
- Maximum Junction Temperature: +150°C
- Thermal Resistance, Junction-to-Air: 70°C/W (Case 221A)
- Thermal Resistance, Junction-to-Case: 5.0°C/W
- Storage Temperature Range: -65°C to +150°C
- Line Regulation: 0.01–0.04%N
- Load Regulation: 5–25 mV
- Reference Voltage: 1.20–1.30 V
- Ripple Rejection: 66–80 dB
- Minimum Load Current: 10 mA
- Maximum Output Current: 0.5 A
Buy the ON Semiconductor Series LM317MDG: Adjustable Voltage Regulator 1.2V-37V
Purchase the ON Semiconductor LM317MDTG online today. This high-quality adjustable voltage regulator offers 1.2V to 37V output with 500 mA current capacity. Equipped with internal current limiting, thermal shutdown, and safe area protection, it ensures durability and reliable performance in power management applications. Its flexible configuration allows use as a switching or current regulator, making it suitable for local and on-card regulation. Buy now to enhance your electronic projects with a proven, Pb-free power regulation solution designed for efficiency and longevity.
Get ON Semiconductor LM317MDTG today—built for power regulation, reliability, and high-voltage operation.
Frequently Asked Questions
Where can I buy ONSEMI LM317MDTG?
You can click on the BUY or RFQ button to purchase LM317MDTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM317MDTG?
You can download the LM317MDTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM317MDTG?
ONSEMI
