ONSEMI NCP1072P100BG High-Voltage Switcher
The NCP1072P100BG is a high-voltage switcher designed for low power offline switch-mode power supplies (SMPS). It integrates a 700V MOSFET, current-mode control, and advanced features like frequency foldback, skip-cycle mode, soft-start, and overvoltage protection. Ideal for applications requiring efficient power conversion with minimal standby power consumption, this device offers excellent EMI performance through frequency jittering, automatic fault detection, and auto-recovery capabilities. Suitable for low-power LED drivers, auxiliary power supplies, and smart meters, ensuring reliable operation from universal mains.
ONSEMI NCP1072P100BG High-Voltage Switcher Specifications:
- Power Supply Voltage: up to 265 Vac
- Maximum Drain Voltage (BVdss): 700 V
- Peak Drain Current (Ipeak): 250 mA (NCP1072P100BG)
- Operating Frequency: 100 kHz (typical), adjustable between 65 kHz and 130 kHz
- Soft-Start Duration: 1 ms
- Overvoltage Protection: Auto-recovery, Clamping at approximately 8.4 V
- Shutdown Temperature: 150°C with 50°C hysteresis
- Operating Junction Temperature: up to 150°C
- ESD Protection: 2 kV (Human Body Model), 200 V (Machine Model)
- Power Dissipation: up to 930 mW with appropriate heatsinking
- Package Types: SOT-223, PDIP-7
- Switching Resistance (Rds(on)): 16-55 Ω depending on package
- Line Detection: UVLO, Vcc OVP, TSD protection features
- Frequency Jittering: ±6% to reduce EMI
- Efficiency at 10 W: approximately 85-88% at 230 Vac
- Standby Power: less than 50 mW in no-load condition

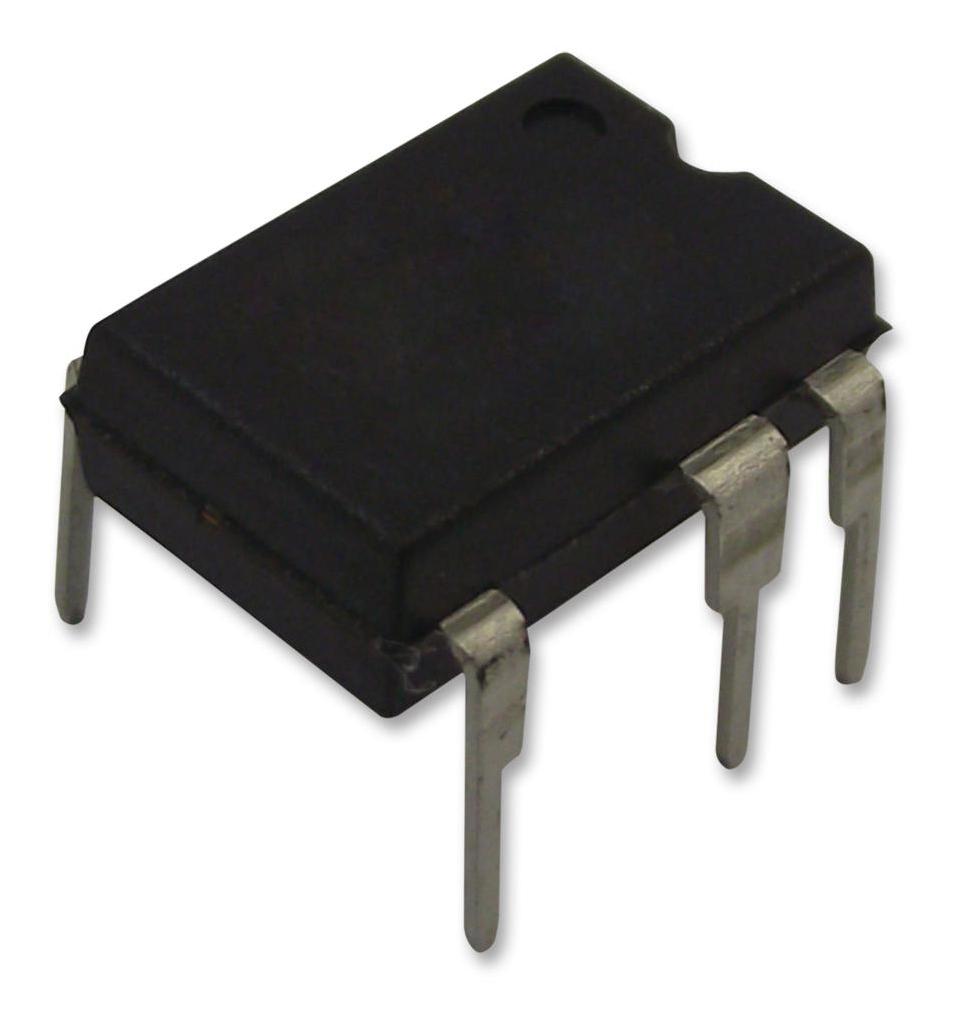

Buy the Buy ON Semiconductor NCP1072P100BG Part Number NCP1072P100BG Online
