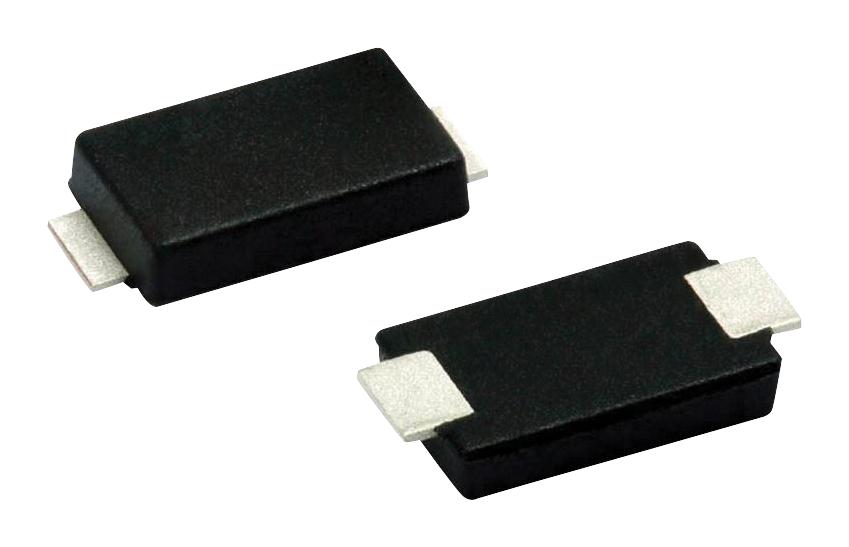

ONSEMI MBRAF3200T3G Schottky Rectifier
The surface mount Schottky power rectifier offers high efficiency low voltage rectification suitable for automotive and industrial applications. Employing Schottky Barrier technology with epitaxial construction, oxide passivation, and a compact J-Bend lead package, it provides high surge current capability, excellent thermal stability, and a maximum reverse voltage of 200 V. Its small, lightweight design makes it ideal for low-voltage, high-frequency circuits, free-wheeling, and polarity protection in systems demanding reliability, safety, and Pb-free compliance. The device features epoxy-molded construction, corrosion resistance, and adheres to UL 94V-0 standards.
ONSEMI MBRAF3200T3G Schottky Rectifier Specifications:
- Maximum Reverse Voltage: 200 V
- Average Forward Current: 3.0 A at 100°C
- Peak Repetitive Reverse Voltage: 200 V
- Operating Junction Temperature: -65°C to +150°C
- Peak Surge Current: 100 A
- Thermal Resistance, Junction-to-Lead: 25°C/W
- Thermal Resistance, Junction-to-Ambient: 90°C/W
- Forward Voltage at 7.0A, 25°C: 0.84 V
- Forward Voltage at 7.0A, 150°C: 0.62 V
- Reverse Current at 25°C: 1.0 mA
- Reverse Current at 150°C: 6.0 mA
- Device Package: SMA-FL, Case 403AA
- Maximum Soldering Temperature: 260°C for 10 seconds
- Mechanical Weight: 95 mg
- Corrosion resistant, Pb-Free, UL 94V-0 epoxy case
- ESD Ratings: Machine Model= A, Human Body Model= 1B
- Operating Junction Temperature Range: -65°C to +150°C
Buy the ON Semiconductor MBRAF3200 – Reliable Schottky Rectifier for Industrial Applications
Order the ON Semiconductor Schottky Rectifier MBRAF3200 online today and benefit from a compact, high-capacity diode designed for automotive, industrial, and high-frequency applications. Its low forward voltage, high surge current capacity, and excellent thermal stability ensure reliable operation in demanding environments. Featuring Pb-free construction, corrosion-resistant surfaces, and UL 94V-0 classification, this device guarantees durability, safety, and compliance. Purchase now to enhance your system’s efficiency with this high-performance, surface-mount Schottky diode.
Buy ON Semiconductor MBRAF3200 now and experience unmatched reliability and performance in high-frequency rectification and automotive systems.
Frequently Asked Questions
Where can I buy ONSEMI MBRAF3200T3G?
You can click on the BUY or RFQ button to purchase MBRAF3200T3G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MBRAF3200T3G?
You can download the MBRAF3200T3G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MBRAF3200T3G?
ONSEMI
