ONSEMI NCP711BMTADJTBG Low Dropout Regulator
The NCP711 is a highly efficient CMOS Low Dropout (LDO) regulator designed for industrial, consumer, and automotive applications. It operates from 2.7 V to 18 V input, providing output voltages from 1.2 V to 17 V. Capable of sourcing up to 140 mA peak current with a typical dropout of 215 mV at 100 mA, it features very low quiescent current of 1 μA, making it ideal for battery-powered, always-on systems. Integrated protections include thermal shutdown, over-current, and short circuit shutdown. Versions with power-good output simplify power sequencing, offered in small TSOP-5 and WDFN-6 packages, with precise voltage regulation and stability even with small ceramic capacitors.
ONSEMI NCP711BMTADJTBG Low Dropout Regulator Specifications:
- Operating Input Voltage Range: 2.7 V to 18 V
- Output Voltage Range: 1.2 V to 17 V
- Peak Output Current: 140 mA
- Dropout Voltage: 215 mV at 100 mA
- Quiescent Current: 1 μA typical
- Shutdown Current: 100 nA typ.
- Output Voltage Accuracy: ±1%
- Thermal Shutdown Temperature: 150°C
- Over-Current and Short Circuit Protections: Yes
- Package Types: TSOP-5, WDFN-6 (2x2)
- Power Good Circuit: Available in version B
- Dropout Voltage: 215 mV at 100 mA
- Line Regulation: typical values around -2% at 18V
- Load Regulation: typically around 0.04%
- Start-up Time: 100-600 μs depending on conditions
- Operating Temperature Range: -40°C to +125°C

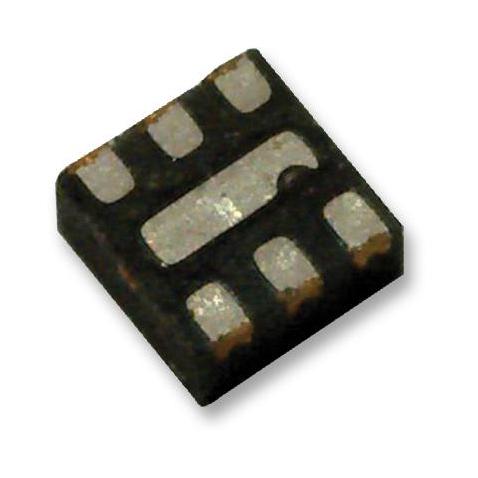

Buy the ON Semiconductor NCP711 B – Reliable Voltage Regulator for Industrial Applications
Get the ON Semiconductor NCP711BMTADJTBG today for reliable voltage regulation in battery-powered and industrial systems. Its low quiescent current, high input voltage capability, and built-in protections ensure optimal performance and energy efficiency. Suitable for applications like home automation, RF devices, and control systems, it features a compact TSOP-5 package with stable operation even with small ceramic capacitors. Improve your device's power management with this efficient, protected, and easy-to-integrate LDO regulator—order now and enhance your project's reliability.
Order your ON Semiconductor NCP711BMTADJTBG today and secure a high-precision, low-noise, energy-efficient voltage regulation solution for your industrial projects.
Frequently Asked Questions
Where can I buy ONSEMI NCP711BMTADJTBG?
You can click on the BUY or RFQ button to purchase NCP711BMTADJTBG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP711BMTADJTBG?
You can download the NCP711BMTADJTBG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP711BMTADJTBG?
ONSEMI
