ONSEMI MBRD1035CTLT4G Power Rectifier
The MBRD1035CTLT4G is a SWITCHMODE™ DPAK surface-mount power rectifier with a molded epoxy case utilizing a Schottky barrier principle in a large-area metal-to-silicon diode design. It features epitaxial construction with oxide passivation and a metal overlay contact, ensuring high stability and reliability. Suitable for low-voltage, high-frequency switching power supplies, free-wheeling, and polarity protection, it offers corrosion-resistant externals, a guard ring for stress protection, matched dual-die construction, high dv/dt capability, and a very low forward voltage drop. Industry-standard UL94V-0 flammability and automotive-qualified features make it versatile for various power management applications.
ONSEMI MBRD1035CTLT4G Power Rectifier Specifications:
- Case: Epoxy, Molded, DPAK package
- Operating Case Temperature: -55°C to +150°C
- Maximum Reverse Voltage: 35 V
- Maximum Continuous Forward Current: 10 A per package
- Peak Repetitive Forward Current: 10 A
- Surge Current: 50 A
- Thermal Resistance, Junction-to-Case: 3.0 °C/W
- Thermal Resistance, Junction-to-Ambient: 137 °C/W
- Maximum Forward Voltage: 0.41 V at 5 A, 0.55 V at 10 A, 25°C
- Reverse Current: 0.20 mA at 17.5 V, 25°C; 5.0 mA at 17.5 V, 100°C
- ESD Rating: Human Body Model >8 kV, Machine Model >400 V
- Flammability Rating: UL 94V-0
- Mechanical: Weight approximately 0.4 grams, corrosion-resistant external surfaces
- Lead Soldering Temp: Max 260°C for 10 seconds

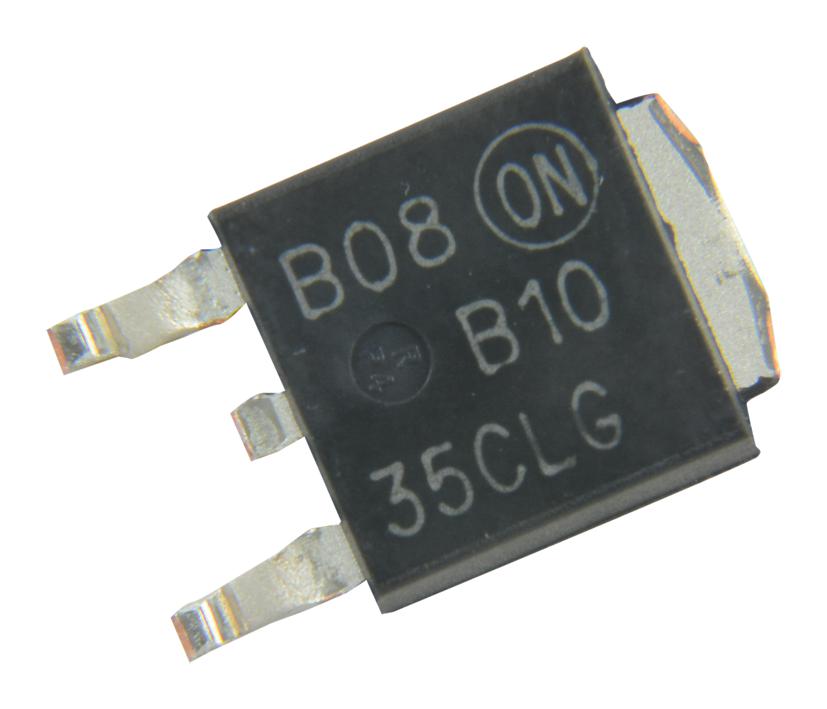

Buy the Buy ON Semiconductor Schottky Power Rectifier Part Number MBRD1035CTLT4G Online
Purchase the ON Semiconductor MBRD1035CTLT4G power rectifier online today and benefit from high reliability, low forward voltage drop, and automotive qualification. Designed for low-voltage, high-frequency switching, it features epoxy molded packaging, corrosion-resistant surfaces, and a guard ring for stress protection. Its matched dual-die construction allows for paralleling to support higher currents. With industry-standard UL94V-0 flammability rating, applications include power supplies, motor controls, and automotive systems needing efficient, durable rectification with high dv/dt capability. Order now for fast, dependable delivery.
Order your ON Semiconductor MBRD1035CTLT4G power rectifier today and ensure reliable high-efficiency power conversion for your industrial or automotive projects.
Frequently Asked Questions
Where can I buy ONSEMI MBRD1035CTLT4G?
You can click on the BUY or RFQ button to purchase MBRD1035CTLT4G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MBRD1035CTLT4G?
You can download the MBRD1035CTLT4G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MBRD1035CTLT4G?
ONSEMI
