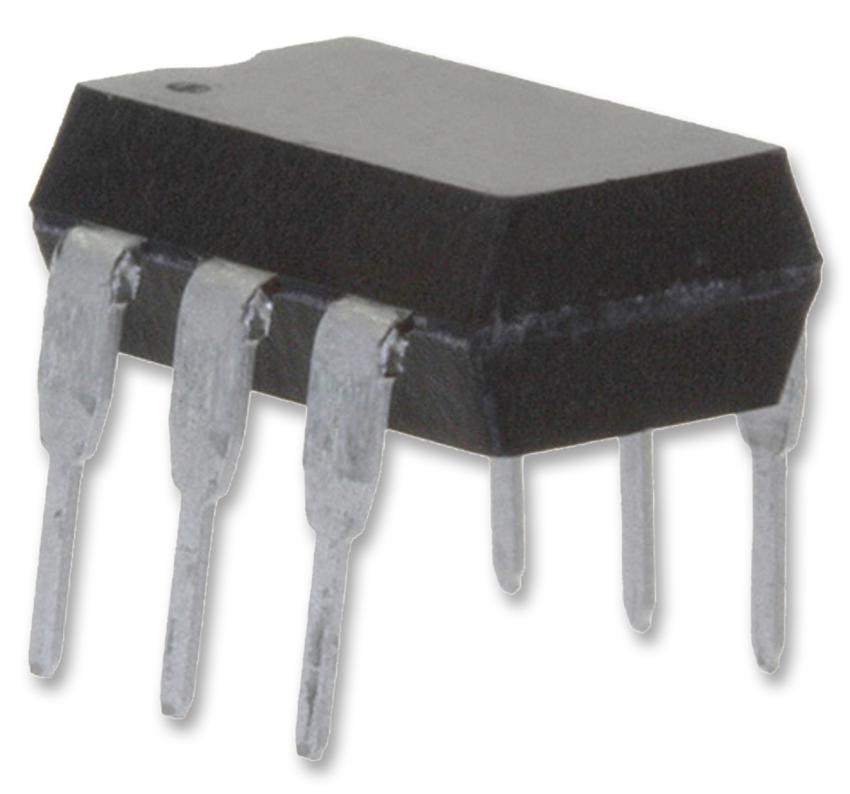

ONSEMI MOC8204M High-Voltage Phototransistor Optocoupler
The 4N38M, H11D1M, H11D3M, and MOC8204M are high-voltage phototransistor optocouplers featuring a gallium arsenide infrared LED coupled with a high-voltage NPN silicon phototransistor. These optoisolators, housed in 6-pin dual-in-line packages, meet safety standards with UL1577 certification and IEC insulation ratings up to 850 V peak working insulation. Suitable for power regulators, digital and microprocessor inputs, and industrial controls, they provide robust electrical isolation, high voltage operation, and reliable performance in demanding electrical environments, ensuring safety and operational integrity. The MOC8204M model offers up to 400 V BVcgo high voltage, ideal for high-voltage switching applications.
ONSEMI MOC8204M High-Voltage Phototransistor Optocoupler Specifications:
- High Voltage: MOC8204M BVcgo = 400 V, H11D1M BVcgo = 300 V, H11D3M BVcgo = 200 V
- UL1577, 4,170 VACRms for 1 Minute safety certification
- Insulation Voltage: 850 V peak, IEC60747-5-5
- Package: 6-pin DIP, Case 646 series
- Maximum Operating Temperature: -40°C to +100°C
- Storage Temperature: -40°C to +125°C
- Lead Solder Temperature: 260°C for 10 seconds
- Collector to Emitter Voltage: MOc8204M = 400 V, H11D1M = 300 V, H11D3M = 200 V
- Collector Current: 100 mA, Power Dissipation: 420 mW (total device), 120 mW (LED), 300 mW (detector)
- Insulation Resistance: > 10^9 Ohms at 500 V
- Isolation Capacitance: 0.2 pF, Isolation Resistance: high
- Device operates within safe electrical insulation limits as per DIN EN/IEC 60747-5-5 standards.
