ONSEMI MC100EP05DTG High-Speed Differential ECL Gate
The MC100EP05 is a high-speed, 2-input differential ECL AND/NAND gate, ideal for applications requiring fast AC performance over GHz frequencies. Featuring a temperature compensation feature, it operates in PECL and NECL modes with a maximum frequency above 3 GHz, and propagation delays as fast as 160 ps. It is packaged in a TSSOP-8 or SOIC-8 surface-mount case, with low power consumption, high ESD protection, and a wide operating temperature range from -40°C to +85°C. This device is suitable for clock distribution, high-speed data processing, and communication systems.
ONSEMI MC100EP05DTG High-Speed Differential ECL Gate Specifications:
- Maximum Frequency: >3 GHz
- Propagation Delay: 160 ps (typical)
- Input Voltage Range (PECL): 3.0 V to 5.5 V Vcc, 0 V Vee
- Input Voltage Range (NECL): Vcc = 0 V, Vee = -5.5 V to -3.0 V
- Output HIGH Voltage (Vcc=3.3V): 2.165 V to 2.415 V
- Output LOW Voltage (Vcc=3.3V): 1.365 V to 1.615 V
- Power Supply Current (at 25°C): 20-24 mA
- Operating Temperature: -40°C to +85°C
- Package Types: SOIC-8 NB, TSSOP-8
- ESD Protection: >4kV Human Body Model
- Duty Cycle: Approximately 50%, with typical rise/fall times of 70-120 ps
- Thermal Resistance (Junction-to-Ambient, SOIC-8): 190°C/W

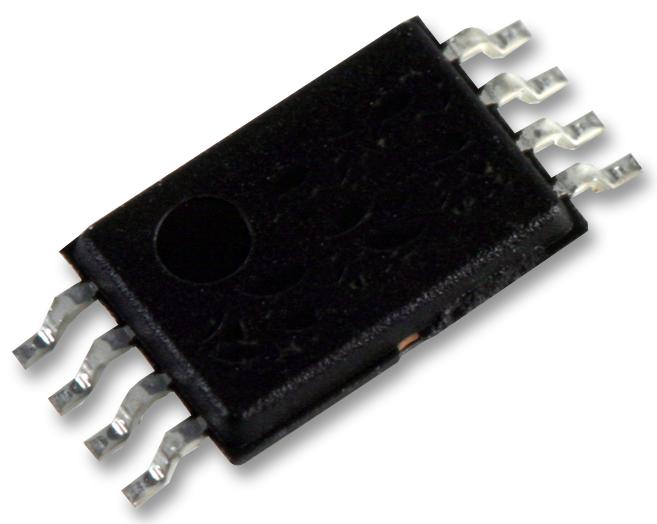

Buy the Buy ON Semiconductor MC100EP05 Part Number MC100EP05DTG Online
Discover the high-speed and reliable MC100EP05 differential ECL gate from ON Semiconductor. Designed for clock distribution, communication, and data processing, this device operates over 3 GHz, with fast propagation delays of 160 ps. Packaged in compact SOIC-8 or TSSOP-8 packages, it offers low power consumption, excellent ESD protection, and wide temperature operation from -40°C to +85°C. Ensure your high-speed projects achieve optimal performance by ordering this essential logic device online today.
Order your ON Semiconductor MC100EP05 differential ECL gate today and ensure your high-speed digital circuits perform with maximum reliability and speed.
