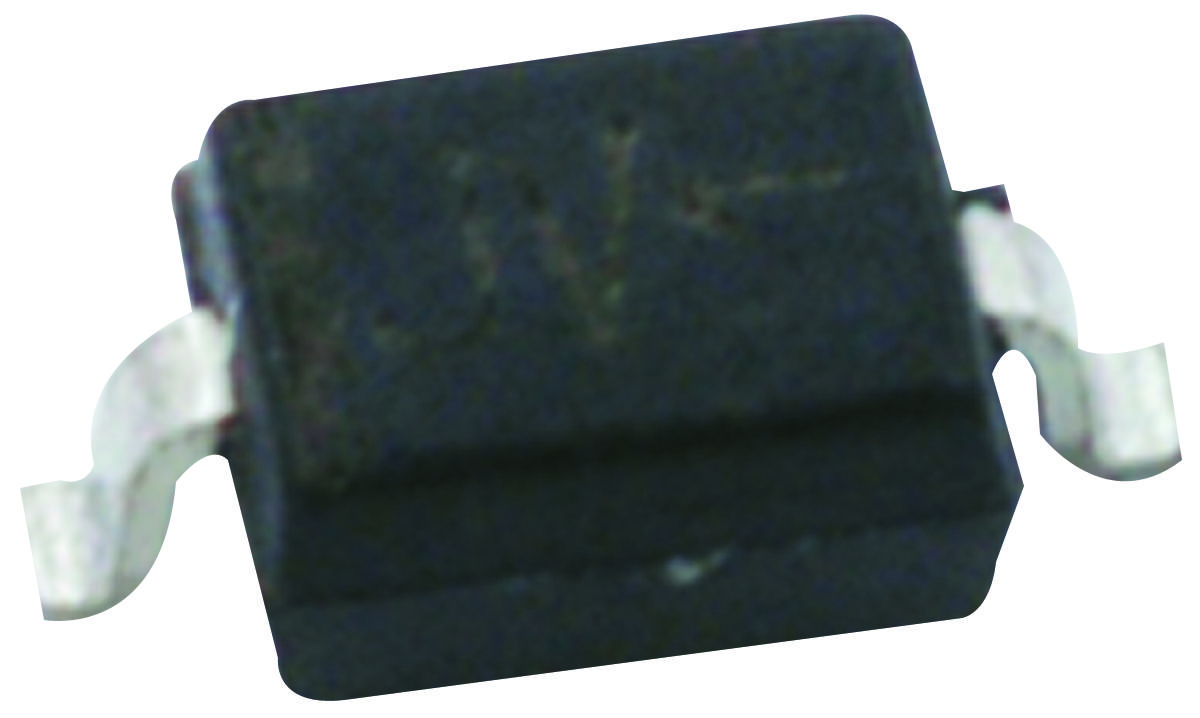

ONSEMI MM3Z22VT1G Zener Diode
The MM3Z22VT1G is a high-performance Zener diode in a compact SOD-323 surface mount package, capable of providing voltage regulation with a maximum power dissipation of 300 mW. Designed for space-constrained applications, it features a breakdown voltage range from 2.4 V to 75 V and is ideal for cellular phones, portable devices, and high-density PCBs. The device is Pb-Free, with corrosion-resistant surfaces, and supports any mounting position, making it reliable for automotive and industrial uses. It complies with UL 94 V-0 flammability standards and has a maximum soldering temperature of 260°C for 10 seconds.
ONSEMI MM3Z22VT1G Zener Diode Specifications:
- Power Dissipation: 300 mW
- Package Type: SOD-323 Surface Mount
- Breakdown Voltage Range: 2.4 V to 75 V
- Dimensions: 0.067" x 0.049" (1.7 mm x 1.25 mm), Body Height: 0.035" (0.9 mm)
- Maximum Soldering Temperature: 260°C for 10 Seconds
- Case Material: Void-free, Transfer-Molded Plastic
- Lead Finish: Pb-Sn or Sn Only (Pb-Free)
- Certifications: UL 94 V-0, AEC-Q101 Qualified
- Junction Temperature Range: -65°C to +150°C
- ESD Rating: Class 3 (> 16 kV) Human Body Model
- Mounting Position: Any
- Thermal Resistance: 416°C/W (Junction-to-Ambient)
Buy the ON Semiconductor Series SZ Zener Voltage Regulators: MM3Z22VT1G
Purchase the high-quality ON Semiconductor Zener Diode MM3Z22VT1G online today. Designed for space-sensitive applications, this diode offers reliable voltage regulation with a power dissipation of 300 mW. Its compact SOD-323 package ensures easy mounting on high-density PCBs, making it perfect for portable devices, cellular phones, and automotive electronics. The device features a breakdown voltage range from 2.4 V to 75 V, meets UL 94 V-0 flammability standards, and supports any mounting position for versatile integration. Buy now for dependable performance and space-saving design.
Get ON Semiconductor MM3Z22VT1G today—built for space-efficient voltage regulation and durability in portable electronics.
Frequently Asked Questions
Where can I buy ONSEMI MM3Z22VT1G?
You can click on the BUY or RFQ button to purchase MM3Z22VT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM3Z22VT1G?
You can download the MM3Z22VT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM3Z22VT1G?
ONSEMI
