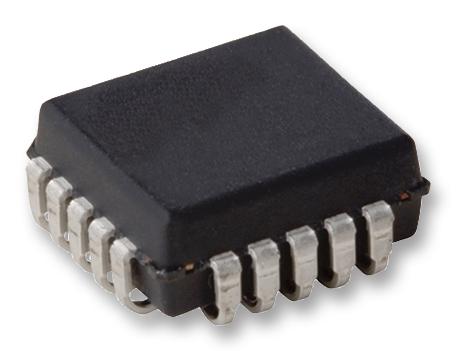

ONSEMI MC10H116FNG Triple Differential Amplifier
The MC10H116 is a high-speed triple differential amplifier designed for sensing differential signals over long lines. Compatible with MECL 10K™, it features low propagation delay of 1.0 ns, excellent noise margin of 150 mV, and voltage compensation. Suitable for applications such as voltage level detection and low-level signal reception, it ensures high impedance input, no internal pull-down resistors, and robust performance with a power dissipation of 85 mW. Available in multiple Pb-Free packages including DIP, SOIC, and PLCC, it excels in high-speed digital and analog circuits requiring precise differential signal amplification.
ONSEMI MC10H116FNG Triple Differential Amplifier Specifications:
- Propagation Delay: 1.0 ns typical
- Power Dissipation: 85 mW typical
- Noise Margin: 150 mV (over operating voltage and temperature)
- Supply Voltage Range: -8.0 V to 0 V
- Input Voltage Range: 0 V to Vee
- Operating Temperature: 0°C to +75°C
- Storage Temperature: -55°C to +150°C
- Package Options: DIP-16, SOIC-16, PLCC-20
- Output Current: 50 mA continuous, 100 mA surge
- Vee Pin: 8, Pin configuration for dual-in-line, SOIC, and PLCC packages
- Application: Low level signal receiver, voltage level detection, differential line sensing
- Compatible with MECL 10K logic family, suitable for high-speed digital circuits
- RoHS compliant, Pb-Free and halogen-free
- Traceable to industry standards, with IC maximum ratings of -8.0 V to 0 V on power supply
Buy the ON Semiconductor MC10H116 – Reliable Differential Amplifier for Industrial Applications
Purchase the ON Semiconductor MC10H116 online today and enhance your high-speed analog and digital circuit performance. This advanced triple differential amplifier offers a 1.0 ns propagation delay, excellent noise margin of 150 mV, and operates efficiently with a dissipation of 85 mW. Its compatibility with MECL 10K™ logic families makes it ideal for sensing differential signals over long lines in industrial and high-speed applications. Available in multiple Pb-Free packages including DIP, SOIC, and PLCC, it guarantees durability, RoHS compliance, and reliable operation for demanding electronic designs.
Buy ON Semiconductor MC10H116 now and experience unmatched reliability and high-speed differential signal amplification for industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI MC10H116FNG?
You can click on the BUY or RFQ button to purchase MC10H116FNG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC10H116FNG?
You can download the MC10H116FNG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC10H116FNG?
ONSEMI
