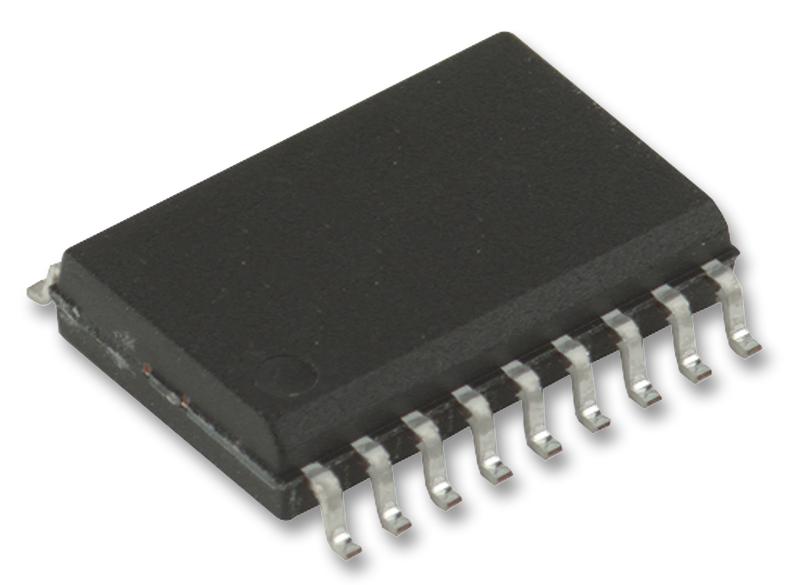

ONSEMI MC74AC244DWR2G Octal Buffer Line Driver
The MC74AC244 and MC74ACT244 are octal buffer and line driver devices with 3-state outputs. Designed for use as memory address drivers, clock drivers, and bus transmitters/receivers, they enhance PCB density and provide source/sink drive capability up to 24 mA. The MC74ACT244 features TTL-compatible inputs, making it suitable for high-speed digital circuits. They are available in SOIC-20W and TSSOP-20 packages, operate over a wide voltage range from 3.0 V to 5.5 V, and include features like high impedance output states, low power consumption, and extensive temperature and voltage ratings. These devices are Pb-Free and UL V-0 rated for flammability, with ESD protection over 2000 V.
ONSEMI MC74AC244DWR2G Octal Buffer Line Driver Specifications:
- Supply Voltage Range: 3.0 V to 5.5 V
- Maximum DC Supply Voltage: 7.0 V
- Input Voltage Range: -0.5 V to Vcc + 0.5 V
- Maximum Input Diode Current: 420 mA
- Maximum DC Output Diode Current: 50 mA
- Maximum Output Sink/Source Current: 50 mA
- Maximum Quiescent Supply Current: 80 μA
- Storage Temperature Range: -65°C to +150°C
- Operating Ambient Temperature: -40°C to +85°C
- Propagation Delay: 9.0 to 10.0 ns (typical) at Vcc=5V
- ESD Protection: >2000 V Human Body Model
- Flammability Rating: UL 94 V-0
- Package Types: SOIC-20W, TSSOP-20
- Lead Temperature (10 sec): 260°C
- Thermal Resistance (SOIC): 65.8 °C/W, (TSSOP): 110.7 °C/W
- Moisture Sensitivity Level: 1
Buy the Buy Semiconductor Components Industries MC74AC244 Part Number DWR2G Online
Order the MC74AC244 in TSSOP or SOIC packages online today and enjoy fast delivery and competitive pricing. This high-speed octal buffer features 3-state outputs, TTL compatibility, and robust ESD protection, making it ideal for memory address driving, bus interface, and data buffering applications. With wide voltage and temperature ranges, low power consumption, and UL V-0 rating, it is perfectly suited for compact, high-performance digital systems. Purchase now for guaranteed quality and reliable performance in your electronics projects.
Buy Semiconductor Components Industries MC74AC244 now and experience unmatched reliability and high-speed digital signal driving for your projects.
Frequently Asked Questions
Where can I buy ONSEMI MC74AC244DWR2G?
You can click on the BUY or RFQ button to purchase MC74AC244DWR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74AC244DWR2G?
You can download the MC74AC244DWR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74AC244DWR2G?
ONSEMI
