ONSEMI MC74AC373DWR2G Octal D-Latch
The MC74AC373/74ACT373 is an 8-bit D-type latch with 3-state outputs, ideal for bus organization in digital systems. It features transparent operation when Latch Enable is HIGH, and data latch when LOW, with outputs in high impedance state when Output Enable is HIGH. Suitable for high-speed data storing and bus interfacing, supports up to 24 mA sourcing/sinking current, and comes in various Pb-free packages like DIP, SOIC, TSSOP, and SOEIAJ for flexible integration into electronic designs. Its reliable performance ensures efficient data control and minimal propagation delay in complex circuits.
ONSEMI MC74AC373DWR2G Octal D-Latch Specifications:
- Supply Voltage: 4.5 V to 5.5 V
- Input Voltage: 0 V to Vcc
- Output Voltage: 0.5 V to Vcc
- Output Current: ±24 mA
- Propagation Delay: 15 to 35 ns (typical)
- Maximum Ratings: Vcc up to 7.0 V, Storage Temperature -65°C to +150°C
- Package Types: PDIP-20, SOIC-20, TSSOP-20, SOEIAJ-20
- Pin Count: 20 pins
- Low Power Consumption and High-Speed Operation
- Pb-Free Packages Available
- High impedance output state when OE is HIGH
- Data inputs compatible with TTL levels
- Designed for high-speed storage and bus interface applications

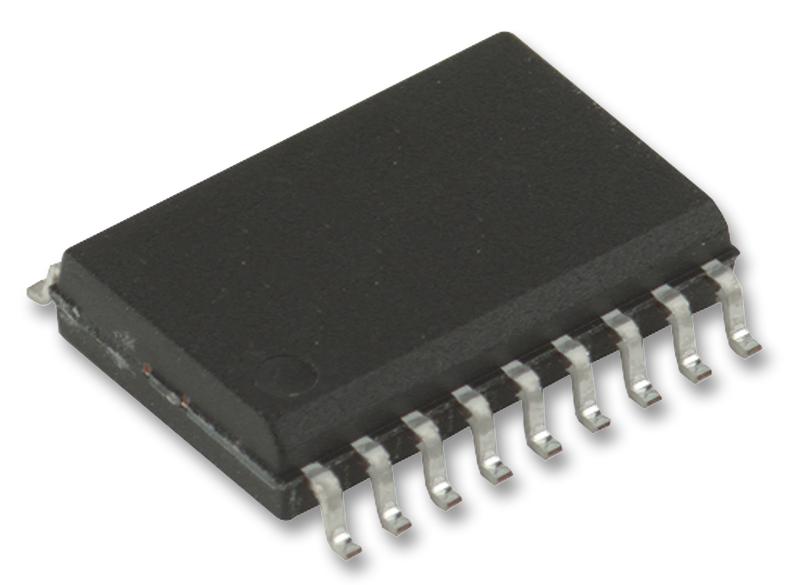

Buy the Buy ON Semiconductor MC74AC373DWR2G Part Number MC74AC373DWR2G Online
Purchase the ON Semiconductor MC74AC373DWR2G online today for high-speed, reliable data storage and bus interface applications. This 8-bit D latch offers transparent operation when LE is HIGH and latches data when LOW, with outputs in high impedance when OE is HIGH. Available in Pb-free packages like SOIC-20 and TSSOP-20, it supports up to 24 mA sourcing/sinking current, ensuring dependable performance in complex electronic systems. Perfect for digital design, early testing, and efficient circuit integration.
Get ON Semiconductor MC74AC373DWR2G today—built for high-speed data storage, reliable bus interfacing, and long-lasting durability in your digital circuits.
Frequently Asked Questions
Where can I buy ONSEMI MC74AC373DWR2G?
You can click on the BUY or RFQ button to purchase MC74AC373DWR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74AC373DWR2G?
You can download the MC74AC373DWR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74AC373DWR2G?
ONSEMI
