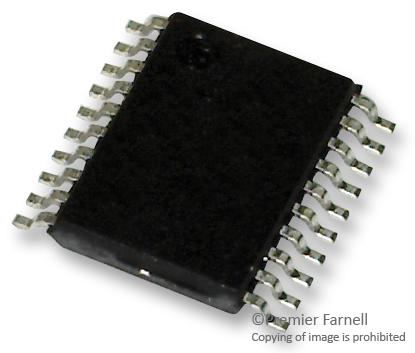

ONSEMI MC74LCX574DTR2G Octal Flip-Flop
The MC74LCX574 is a high-performance, low-voltage, octal D-type flip-flop with flow-through pinout, operating from 2.3 to 3.6 V. It features 8 edge-triggered flip-flops with individual D inputs and 3-state outputs, supporting TTL-compatible inputs and outputs for interface capability with 5 V logic. Designed for low power consumption, it supports live insertion, has high impedance when Vcc is 0 V, and is suitable for high-speed applications with a clock frequency up to 150 MHz. Its robust ESD performance and Pb-Free, RoHS compliance make it ideal for automotive and industrial systems.
ONSEMI MC74LCX574DTR2G Octal Flip-Flop Specifications:
- Supply Voltage: 2.3 to 3.6 V
- Operating Temperature Range: -55°C to +125°C
- Input Voltage: 0 to 5.5 V
- Output Voltage: 0 to Vcc (Voe = 3.6 V)
- Output Current: ±24 mA
- Clock Frequency: up to 150 MHz
- Propagation Delay: 15 to 95 ns
- Power Dissipation Capacitance: 25 pF
- ESD Protection: >2000 V Human Body Model
- Package Options: SOIC-20, TSSOP-20
- RoHS and Pb-Free Compliant
Buy the ON Semiconductor Series Low-Voltage CMOS: MC74LCX574
Purchase the high-performance octal flip-flop online today. The MC74LCX574 offers reliable, fast operation from 2.3 to 3.6 V with 8 edge-triggered flip-flops, individual D inputs, and 3-state outputs. Its flow-through design simplifies PCB layout, supporting up to 150 MHz clock frequency, making it suitable for high-speed digital applications. With excellent ESD protection, low static power, and RoHS compliance, it ensures system reliability and efficiency, perfect for automotive, industrial, and consumer electronics requiring robust performance and easy integration.
Get ON Semiconductor MC74LCX574 today—built for precision, high speed, and long-lasting durability in digital systems.
