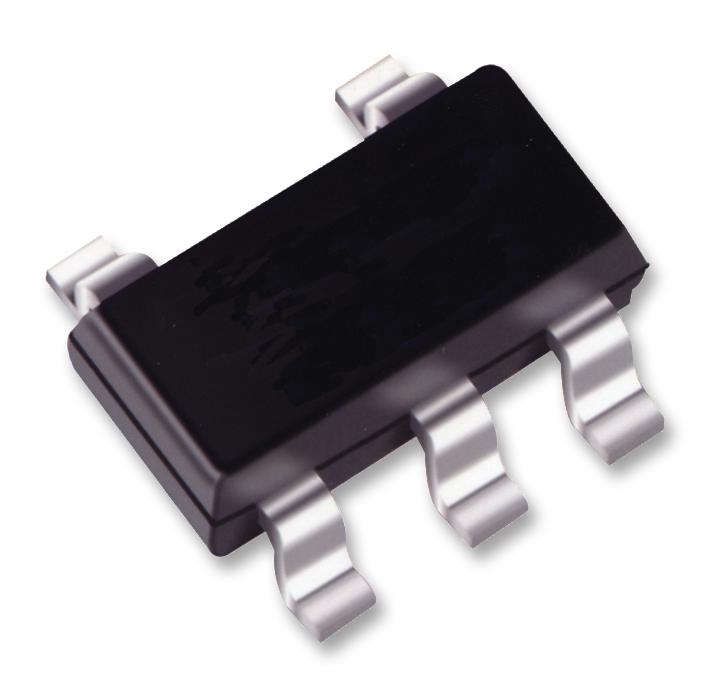

ONSEMI MC74VHC1G02DTT1G High-Speed CMOS Logic Gate
The MC74VHC1G02 is a high speed CMOS 2-input NOR gate that features low power dissipation and high noise immunity, fabricated with silicon gate technology. Its input structure provides protection up to 7 V, making it suitable for interfacing 5 V circuits with 3 V systems. Designed with advanced FET technology, it offers balanced propagation delays and compatibility with standard logic families. Ideal for digital logic applications requiring fast switching and reliable performance, it incorporates power-down protection and is available in various compact packages for versatile integration.
ONSEMI MC74VHC1G02DTT1G High-Speed CMOS Logic Gate Specifications:
- DC Supply Voltage: 0.5 to 7.0 V
- Input Voltage: 0.5 to 7.0 V
- Output Voltage Range: 0 to 7.0 V
- High or Low State: -0.5 to VCC + 0.5 V
- DC Input Diode Current: -20 mA
- DC Output Diode Current: ±20 mA
- Maximum DC Output Current per Pin: 25 mA
- Maximum Power Dissipation: 150 mW in SC70-5, 200 mW in TSOP-5 packages
- Junction Temperature: +150°C
- Storage Temperature Range: -65°C to +150°C
- ESD Withstand Voltage: >2000 V (human body model)
- Propagation Delay (tPLH/tPHL): Typical 3-11 ns at VCC=5 V
- Input Capacitance: Approx. 10 pF
- Package Types: SC-88A, TSOP-5, DTT
Buy the ON Semiconductor Series Logic Gate: MC74VHC1G02
Purchase the ON Semiconductor MC74VHC1G02 today for reliable high-speed digital processing. Perfect for interfacing 5 V and 3 V circuits, this CMOS NOR gate offers low power consumption, robust input protection up to 7 V, and seamless compatibility with standard logic families. Ideal for digital systems requiring quick switching, it features balanced propagation delays and durable, compact packages. Buy online now to ensure your projects benefit from precise performance and long-term reliability.
Get ON Semiconductor MC74VHC1G02 today—built for high-speed digital logic and long-lasting durability.
