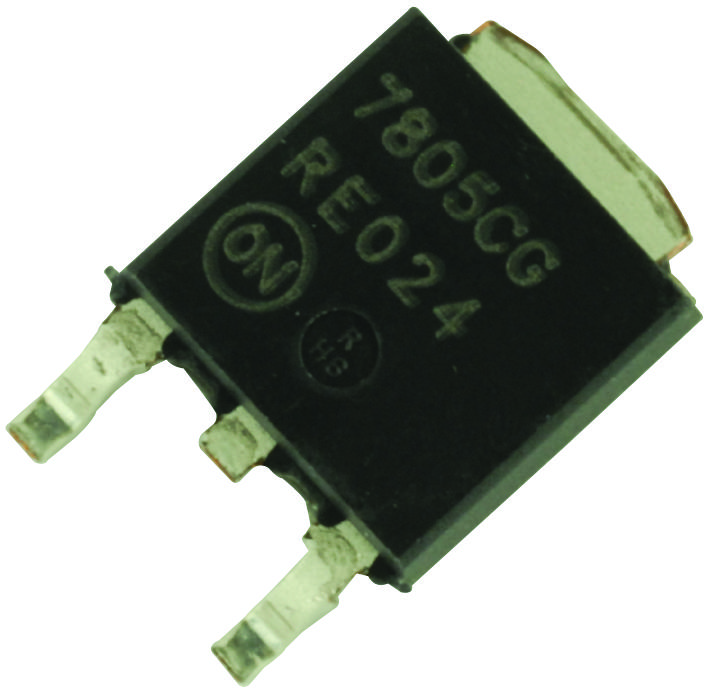

ONSEMI MC7805CDTRKG Voltage Regulator
The MC7805CDTRKG is a linear voltage regulator suitable for a wide range of applications, including local and on-card regulation. It features internal current limiting, thermal shutdown, and safe-area compensation to ensure reliable operation. When properly heat-sinked, it can deliver output currents exceeding 1.0A. Although primarily designed as a fixed voltage regulator, it can be used with external components to achieve adjustable voltages and currents. The device does not require external components for basic operation, and includes internal thermal overload protection, short-circuit current limiting, and safe-area compensation. Its output voltage tolerance options include 1.5%, 2%, and 4%. Typical applications include motor drive and control systems.
ONSEMI MC7805CDTRKG Voltage Regulator Specifications:
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Output Voltage Tolerance: 1.5%, 2%, and 4%
- Surface Mount D2PAK-3 and DPAK packages
- Input Voltage Range: 6.0-18V, 24V max
- Power Dissipation: Internally Limited
- Thermal Resistance: 92°C/W maximum
- Storage Temperature: -65°C to +150°C
- Operating Junction Temperature: -55°C to +150°C
- Case Material: Plastic encapsulation including D2PAK and DPAK packages
- ESD Protection: Human Body Model 2000 V, Machine Model 200 V
- Peak Output Current: 2.2A
- Dropout Voltage: 2.0 V at 1.0 A
- Ripple Rejection: Typical 60 dB at 120 Hz
- Output Noise Voltage: 10 μV (10 Hz to 100 kHz)
- Output Resistance: Approx. 14 mΩ
