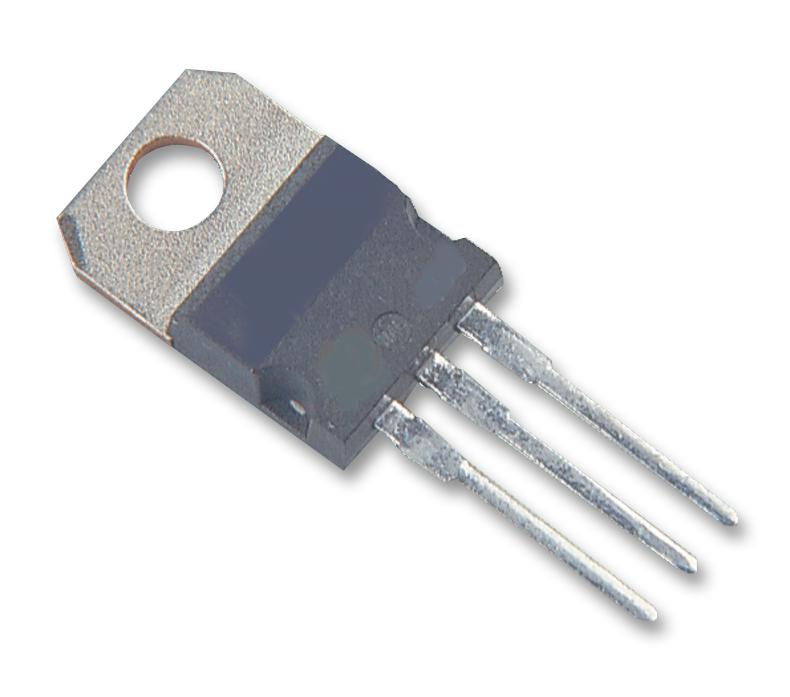

ONSEMI MC7915BTG Negative Voltage Regulator
The MC7915BTG is a -15V fixed negative voltage regulator designed for stable and reliable power supply applications. It incorporates internal current limiting, thermal shutdown, and safe-area compensation, ensuring robust operation even under high temperature or load conditions. No external components are necessary, simplifying installation. Capable of delivering over 1A of output current with appropriate heatsinking, it is suitable for industrial and power management applications. The device's 4% voltage tolerance and built-in protection features make it a dependable choice for sensitive electronic systems. Delivery may be affected by current market demand, and discounts are not applicable.
ONSEMI MC7915BTG Negative Voltage Regulator Specifications:
- Output Voltage: -15V with 4% tolerance
- Input Voltage Range: Typically -20V to -30V
- Maximum Input Voltage: -35V
- Output Current: > 1A with heatsinking
- Thermal Shutdown: Yes
- Current Limiting: Yes
- Safe-area compensation: Yes
- Internal Short Circuit Protection: Yes
- Package Type: TO-220 and D2PAK
- Operating Temperature Range: 0°C to +125°C
- Storage Temperature Range: -65°C to +150°C
- Line Regulation: Typical 2-8 mV variation
- Load Regulation: Typical 1-10 mV variation
- Output Noise Voltage: 40-45 μV
- Ripple Rejection: 60-70 dB
- Dropout Voltage: Approximately 1.3 V
- Markings: 79xxBTG
- Certifications: RoHS compliant (Pb-Free), ESD protected
Buy the On Semiconductor Series Negative Voltage Regulator: MC7915BTG
Secure your power management needs by purchasing the On Semiconductor MC7915BTG online. This highly reliable negative voltage regulator provides over 1A current capacity, internal protections, and no external components required for easy installation. Ideal for industrial, power supply, and electronics applications, it integrates thermal shutdown and current limiting features to ensure durability and safety. With fast delivery and excellent quality, the MC7915BTG is the smart choice for your electronic projects—order now to ensure uninterrupted performance.
Buy On Semiconductor MC7915BTG now and experience unmatched reliability and performance for your power supply and industrial control projects.
Frequently Asked Questions
Where can I buy ONSEMI MC7915BTG?
You can click on the BUY or RFQ button to purchase MC7915BTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC7915BTG?
You can download the MC7915BTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC7915BTG?
ONSEMI
