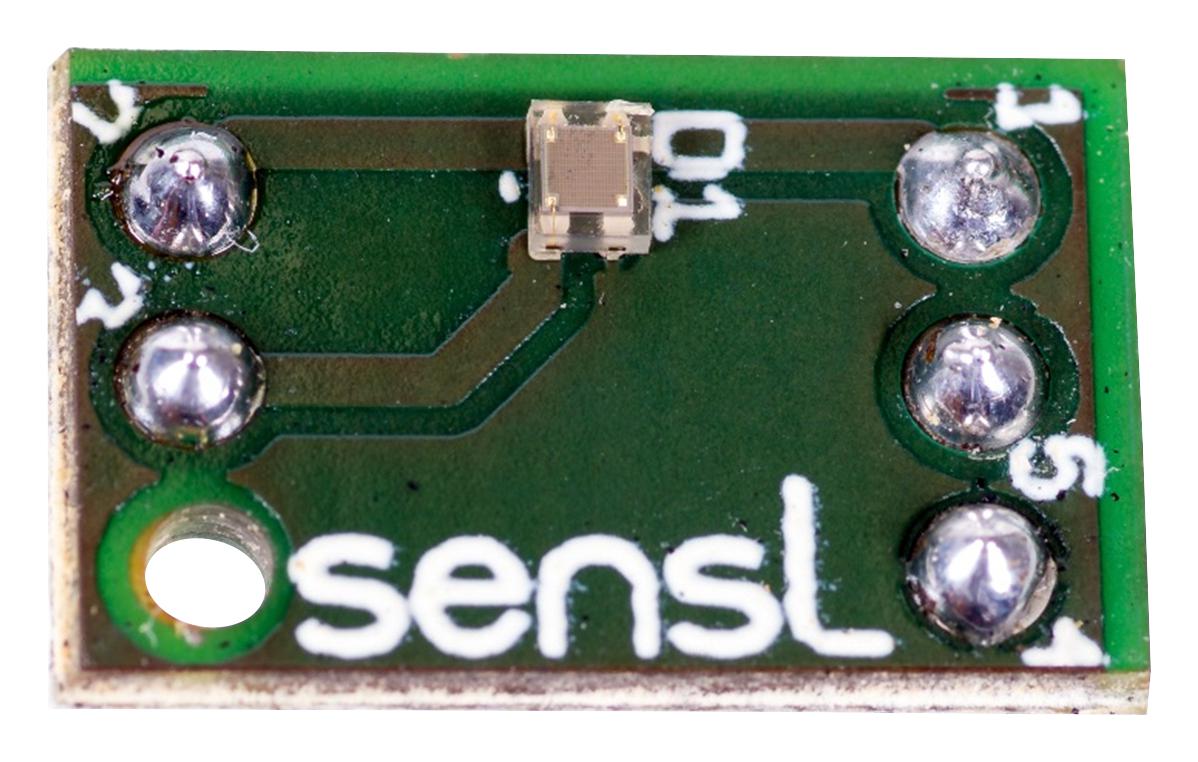

ONSEMI MICRORBSMTPA10035GEVB Silicon Photomultiplier Sensor
ON Semiconductor's Silicon Photomultiplier sensors deliver high gain, fast response, and excellent photon detection efficiency, especially in the red and NIR spectrum. These solid-state, compact sensors feature low dark count rate, robust MLP packaging suitable for reflow soldering, and multi-photon detection capability, making them ideal for applications like medical imaging, remote sensing, biomedical research, and LIDAR systems. Designed for volume production, they support high responsivity, low temperature coefficient, and wide spectral sensitivity, ensuring reliable performance in demanding industrial and scientific environments.
ONSEMI MICRORBSMTPA10035GEVB Silicon Photomultiplier Sensor Specifications:
- Active Area: 1 mm x 1 mm
- Microcell Sizes: 10 um x 10 um, 20 um x 20 um, 35 um x 35 um
- Number of Microcells: 4296 (10 um), 1590 (20 um), 620 (35 um)
- Microcell Fill Factor: 43% (10 um), 63% (20 um), 76% (35 um)
- Spectral Range: 300 to 1050 nm
- Breakdown Voltage: ~27V (10 um), ~23V (20 um), ~25V (35 um)
- Overvoltage: 10-20V depending on microcell size
- Responsivity: up to 420 kaw at 905 nm and maximum overvoltage
- Photon Detection Efficiency (PDE): up to 10.3% at 905 nm
- Dark Count Rate: up to 27 MHz
- Gain: up to 1.7 x 10^8
- Rise Time: as low as 0.9 ns
- Microcell Recharge Time Constant: up to 73 ns
- Package Dimensions: 1.5mm x 1.8mm
- Operating Temperature Range: -40°C to +85°C
- Soldering: Compatible with lead-free, reflow process
- Encapsulant: Clear transfer molding compound with Refractive Index 1.57
Buy the ON Semiconductor MICRORBSMTPA10035 U+2013 Reliable Silicon Photomultiplier for Industrial Applications
Order the Silicon Photomultiplier sensor from ON Semiconductor today for top-tier performance in biomedical imaging, LIDAR, and remote sensing. Designed with high responsivity, fast response time, and low dark count rate, this solid-state sensor guarantees reliable operation across a wide spectral range. Easy to integrate with robust packaging and compatibility with reflow soldering, it’s ideal for high-volume applications demanding precision and durability. Secure your supply now and enhance your industrial and scientific projects with proven photodetector technology.
Buy ON Semiconductor MICRORBSMTPA10035 now and experience unmatched reliability and high sensitivity for advanced biomedical and sensing solutions.
