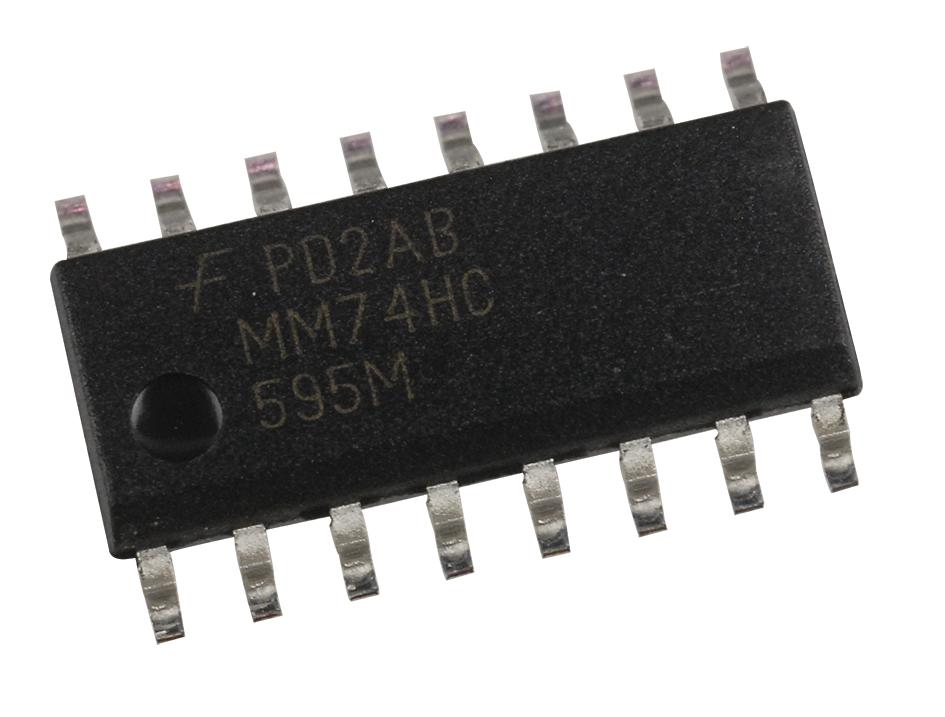

ONSEMI MM74HC595M 8-Bit Shift Register
The MM74HC595 high-speed shift register utilizes advanced silicon-gate CMOS technology, providing high noise immunity and low power consumption. It features an 8-bit serial-in, parallel-out shift register with an 8-bit D-type storage register with 3-state outputs, capable of driving 15 LS-TTL loads. The device has separate, positive-edge triggered clocks for shift and storage registers, with cascading options for expanded output. Operating at up to 30 MHz shift frequency, it is compatible with the 74LS family, making it ideal for industrial automation, digital control, and data transfer applications.
ONSEMI MM74HC595M 8-Bit Shift Register Specifications:
- Operating Voltage Range: 2V-6V
- Shift Frequency: up to 30MHz
- Input Current: 1A maximum
- Quiescent Current: 80nA maximum
- Number of Bits: 8
- Outputs: 8 three-state for parallel data
- Separate Clocks: shift and storage register
- Clear Function: direct overriding clear
- Package Options: 16-Lead SOIC, SOP, TSSOP, PDIP
- Storage Temperature Range: -65°C to +150°C
- Power Dissipation (PDIP Package): 600mW
- Supply Voltage: 2V to 6V
- Input Voltage: -1.5V to VCC + 1.5V
- Output Voltage: -0.5V to VCC + 0.5V
- Lead Temperature (Soldering): +260°C
- ESD Protection: 4000V HBM
Buy the Fairchild Series 74HCMM74HC595: 8-Bit Shift Register with Output Latches
Buy the Fairchild MM74HC595 online now and experience reliable high-speed data transfer. This 8-bit shift register offers low power consumption, adjustable voltages from 2V to 6V, and a guaranteed shift frequency up to 30 MHz. Perfect for industrial automation, digital control, and high-speed data applications, it features cascading ability for expanded outputs and a robust package design. Purchase now to secure a high-quality, versatile component that ensures durability and professional-grade performance for your engineering projects.
Get Fairchild MM74HC595 today—built for precision, low power consumption, and high-speed digital data transfer in industrial and control systems.
Frequently Asked Questions
Where can I buy ONSEMI MM74HC595M?
You can click on the BUY or RFQ button to purchase MM74HC595M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM74HC595M?
You can download the MM74HC595M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM74HC595M?
ONSEMI
