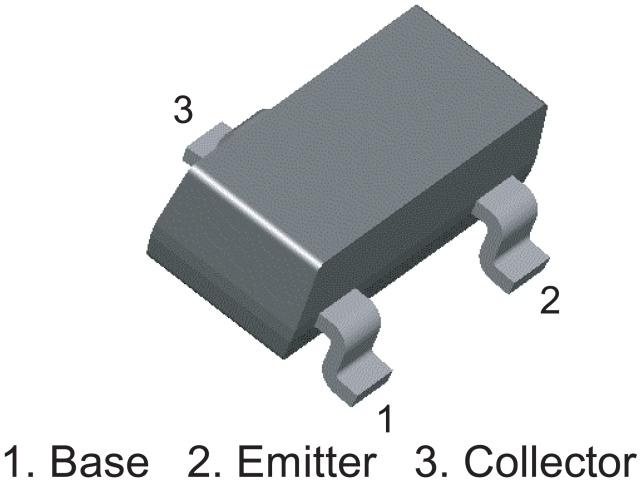

ONSEMI MMBT2369LT1G Switching Transistor
The MMBT2369L and MMBT2369AL are NPN silicon switching transistors designed for a variety of applications, including automotive and industrial use. These devices feature high collector-emitter voltage ratings of 15 V and 40 V respectively, with collector current capacity up to 200 mA. They are Pb-free, halogen-free, and ROHS compliant, ensuring environmentally friendly manufacturing. With low saturation voltage and high current gain, these transistors offer reliable performance for switching and amplification tasks in compact SOT-23 packages, suitable for portable and embedded systems requiring efficient control components.
ONSEMI MMBT2369LT1G Switching Transistor Specifications:
- Package: SOT-23
- Collector-Emitter Voltage: 15 V (MMBT2369L), 40 V (MMBT2369A)
- Collector-Base Voltage: 40 V
- Emitter-Base Voltage: 45 V
- Collector Current: 200 mA
- Total Device Dissipation: 225 mW (FR-5 Board), 300 mW (Alumina Substrate)
- Thermal Resistance Junction-to-Ambient: 55.6 °C/W (FR-5), 41.7 °C/W (Alumina)
- Storage and Junction Temperature: -55°C to +150°C
- DC Gain: 40 to 120
- Collector-Emitter Saturation Voltage: 0.25 V at 10 mA collector current
- Base-Emitter Saturation Voltage: 0.85 V
- Switching Times: Storage time 5 ns, Turn-On time 8 ns, Turn-Off time 10 ns
- Capacitance: Approx. 4 pF at 5 V, 1 MHz
- Maximum Collector-Emitter Voltage: 50 V
