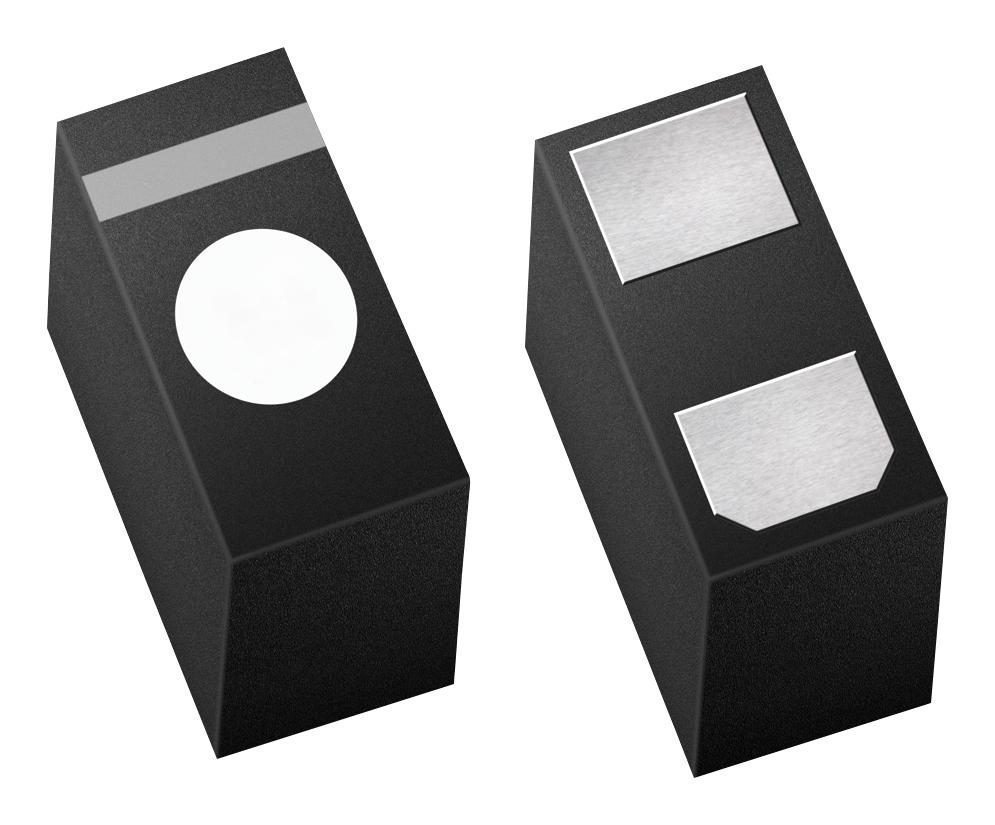

ONSEMI ESD7181MUT5G ESD Protection Diode
The ESD7181 offers ultra-low capacitance ESD protection suitable for RF applications, wireless chargers, and sensitive electronic components. Its small form factor (0.62 x 0.32 mm) and low leakage current (<1 nA) ensure minimal interference and efficient performance. With industry-leading capacitance linearity, quick response time, and excellent clamping capabilities up to 8 kV IEC contact discharge, it is ideal for compact designs requiring reliable transient voltage suppression. The device is RoHS compliant, Pb-Free, halogen and BFR free, making it suitable for automotive and industrial electronics requiring stringent site controls.
ONSEMI ESD7181MUT5G ESD Protection Diode Specifications:
- Package: X3DFN2 (0201), dimensions 0.62 x 0.32 mm, height 0.355P mm
- Maximum Reverse Peak Pulse Current: 8 A
- Working Voltage: +18.5 V
- Clamping Voltage: 377 V at 8 A (IEC 61000-4-2, +8 kV contact discharge)
- Breakdown Voltage: 20.5 - 35 V at 1 mA
- Reverse Leakage Current: <1 nA at 18.5 V
- Junction Capacitance: 0.3 pF (typ) at 1 MHz, 0.15 pF at 1 GHz
- Dynamic Resistance: <1 Ω
- Insertion Loss: 0.045 dB at 1 MHz, -0.335 dB at 8.5 GHz
- Maximum Power Dissipation: 250 mW at 25°C
- Operating Temperature Range: -55°C to +150°C
- Soldering Temperature: max 260°C (10 sec)
- Certifications: RoHS, Pb-Free, Halogen Free, BFR Free, AEC-Q101 Qualified
