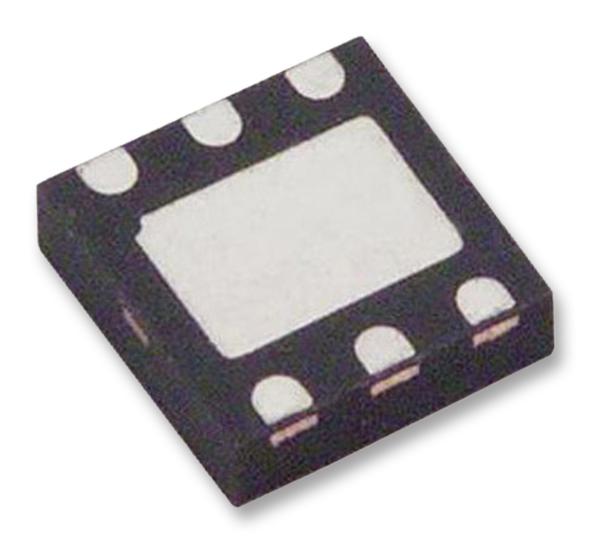

ONSEMI NLSX4401MU1TCG Dual-Supply Level Translator
The NLSX4401 is a high-speed, bi-directional level translator designed for industrial, consumer, and communication applications. It supports dual supply voltages from 1.5 V to 5.5 V, enabling seamless voltage translation between different logic levels without a directional pin. The device features integrated 10 kΩ pull-up resistors, overvoltage tolerance on enable and I/O pins, and a compact UDFN6 package measuring 1.45 mm x 1.0 mm. Ideal for I2C, SMBus, and low-voltage device level shifting, it ensures fast data transfer up to 24 Mbps with low skew and robust ESD protection.
ONSEMI NLSX4401MU1TCG Dual-Supply Level Translator Specifications:
- Operating Voltage Range: 1.5 V to 5.5 V on both Vcc and Vi rails
- Data Rate: Up to 24 Mbps guaranteed, 20 Mbps in some configurations, 3 Mbps on open-drain
- Package: UDFN6, 1.45 mm x 1.0 mm
- Integrated pull-up resistors: 10 kΩ on I/O lines
- Overvoltage Tolerance (OVT): 5.5 V on enable and I/O pins
- Input Voltage (VI): 1.5 V to 5.5 V; Vcc, Veo, Vi operate within specified limit
- Propagation Delay: Maximum 24 ns depending on configuration and voltage
- Skew: Typically 2 ns between channels
- Temperature Range: -55°C to +125°C
- ESD Protection: > 5000 V Human Body Model
- Low power consumption, high-speed operation, and power-off protection
Buy the ON Semiconductor NLSX4401 – Reliable Level Translator for Industrial Applications
Purchase the ON Semiconductor NLSX4401 online today to experience its high-speed, bi-directional voltage level shifting capabilities. Designed for reliable performance across a wide voltage range from 1.5 V to 5.5 V, this compact device supports fast data rates up to 24 Mbps with low skew and excellent ESD protection. Its integrated 10 kΩ pull-up resistors simplify connections, making it ideal for communication protocols like I2C and SMBus in space-constrained applications. Order now to enhance your electronic designs with dependable level translation and efficient power management, delivered straight to your door.
Order your ON Semiconductor NLSX4401 dual-supply level translator today and ensure seamless, high-speed voltage translation in your industrial and consumer projects.
Frequently Asked Questions
Where can I buy ONSEMI NLSX4401MU1TCG?
You can click on the BUY or RFQ button to purchase NLSX4401MU1TCG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NLSX4401MU1TCG?
You can download the NLSX4401MU1TCG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NLSX4401MU1TCG?
ONSEMI
