ONSEMI NCS211RMUTAG Current Sense Monitor
The NCS211R is a precision, voltage output, bidirectional current shunt monitor designed for high-side and low-side current sensing in automotive, telecom, and power management applications. Offering a wide common-mode input range from -0.3 V to 26 V and a supply voltage range from 2.2 V to 26 V, it features low offset voltage, minimal offset drift, and rail-to-rail output capability. Its compact UQFN10 package ensures reliable operation over extended temperature ranges (-40°C to +125°C). Ideal for accurate current measurement, this device helps optimize power efficiency and system monitoring with low power consumption of approximately 40 μA typical current.
ONSEMI NCS211RMUTAG Current Sense Monitor Specifications:
- Supply Voltage Range: 2.2 V to 26 V
- Common-Mode Input Voltage Range: -0.3 V to 26 V
- Offset Voltage: < 55 μV
- Offset Drift: < 0.5 μV/°C
- Gain: 500 V/V
- Gain Error: ±2 %
- Input Bias Current: 60 μA max
- Output Swing to Vs: < ±0.05 V (with RL=10kΩ)
- Bandwidth (fap): 25 kHz
- Input Voltage Range: 0.3 V to 26 V
- Power Consumption: 40 μA typical
- Package: UQFN10
- Operating Temperature Range: -40°C to +125°C
- ESD Capability: 2000 V (Human Body Model)

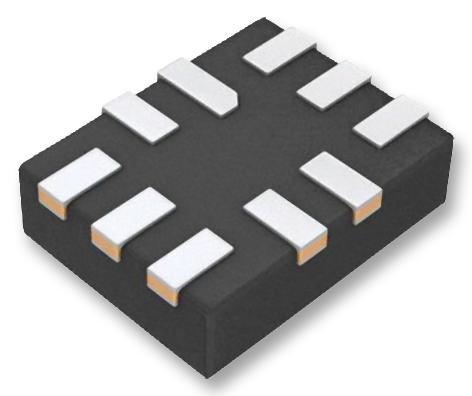

Buy the ON Semiconductor NCS211R – Reliable Current Sense for Industrial Applications
Buy the ON Semiconductor NCS211R today online to ensure precise current measurement in automotive, telecom, and power management applications. Its wide input voltage range and low offset voltage guarantee reliable, high-accuracy performance, making it ideal for both high-side and low-side current sensing. Compact UQFN10 packaging simplifies integration into your design, while the low power consumption preserves system efficiency. Perfect for demanding industrial environments, order now and enhance your project’s power monitoring capabilities with trusted quality.
Order your ON Semiconductor NCS211R precision current monitor today and enhance your power management and automotive systems with dependable accuracy.
Frequently Asked Questions
Where can I buy ONSEMI NCS211RMUTAG?
You can click on the BUY or RFQ button to purchase NCS211RMUTAG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCS211RMUTAG?
You can download the NCS211RMUTAG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCS211RMUTAG?
ONSEMI
