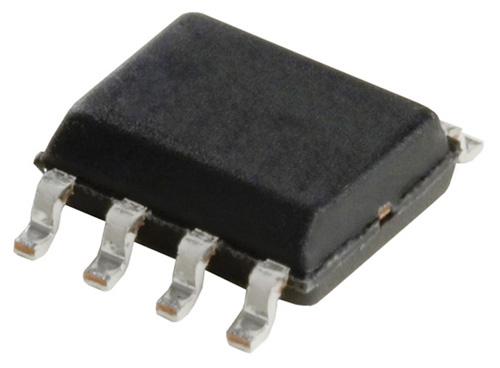

ONSEMI MOCD217M Dual-Channel Optocoupler
The MOCD217M is a dual-channel surface-mount optocoupler that uses infrared LEDs to optically couple to silicon phototransistors. It features closely matched current transfer ratios, a guaranteed minimum BVCEO of 30V, and requires low LED input current for easier logic interfacing. Its compact SOIC-8 package with 0.050-inch lead spacing makes it ideal for high-density applications, eliminating through-the-board mounting. Suitable for feedback control, system interfacing, switching, and detection in industrial, telecommunications, and security systems, it ensures reliable electrical isolation and signal transfer.
ONSEMI MOCD217M Dual-Channel Optocoupler Specifications:
- Package Type: SOIC-8 surface mount
- Lead Spacing: 0.050 inches
- Input LED Forward Voltage: 1.3 V at 1 mA (MOCD217M), 1.25 V at 30 mA (MOCD208M), 1.15 V at 10 mA (MOCD213M), 1.05 V at 1 mA (MOCD217M)
- Input Current: 1 mA typical, 30 mA maximum
- Output Collector-Emitter Voltage: 70 V for MOCD207M, MOCD208M, MOCD213M; 30 V for MOCD211M, MOCD217M
- Collector Current: 150 mA continuous, 1.0 A peak
- Isolation Voltage: 2,500 VAC rms for 1 minute
- Insulation Resistance: > 10^9 ohms at 500 VDC
- Ambient Temperature Range: -40°C to +100°C
- Power Dissipation: 240 mW total device, 90 mW for LEDs
- Safety Ratings: UL1577, IEC60747-5-5, 565 V peak working insulation
Buy the Fairchild Series MOCD Dual-Channel Optocoupler: MOCD217M
Purchase the Fairchild MOCD217M dual-channel optocoupler online for high-density applications requiring electrical isolation, reliable signal transfer, and robust performance. Its compact SOIC-8 surface-mount package with 0.050-inch lead spacing is ideal for space-constrained circuits in industrial automation, communications, and security devices. Featuring closely matched current transfer ratios, a guaranteed BVCEO of 30V, and low input current needs, it ensures accurate, efficient, and safe operation. Buy now and enhance your system’s isolation and signal integrity with proven reliability.
Get Fairchild MOCD217M today—built for high-density signal isolation and reliable performance in industrial and security systems.
Frequently Asked Questions
Where can I buy ONSEMI MOCD217M?
You can click on the BUY or RFQ button to purchase MOCD217M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOCD217M?
You can download the MOCD217M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOCD217M?
ONSEMI
