ONSEMI MUN2233T1G Digital Transistor
The MUN2233T1G is a digital transistor with a monolithic bias network designed to replace a single device and external resistors, reducing system cost and board space. It features ultrafast switching, high gain, and a compact SOT-23 package suitable for automotive and industrial applications. This Pb-Free, RoHS-compliant device is qualified under AEC-Q101 standards, making it ideal for automotive electronics, switching circuits, and automation systems with high reliability requirements. The transistor offers a collector-base voltage of 50 V and a continuous collector current of 100 mA, ensuring dependable performance in demanding environments.
ONSEMI MUN2233T1G Digital Transistor Specifications:
- Package: SOT-23
- Collector-Base Voltage: 50 V
- Collector-Emitter Voltage: 50 V
- Collector Current: 100 mA
- Input Reverse Voltage: 5 V
- Input Forward Voltage: 30 V
- Total Device Dissipation at 25°C: 246 mW (L) / 230 mW (SC-59) / 254 mW (NSBC143ZF3)
- Thermal Resistance Junction to Ambient: 508 °C/W (L), 540 °C/W (SC-59), 493 °C/W (NSBC143ZF3)
- Storage Temp: -55°C to +150°C
- Qualification: AEC-Q101, Pb-Free, RoHS, Halogen Free
- Device Marking: 8K for MUN2233T1G
- Gain: 80 to 200 (DC current gain)
- Saturation Voltage: Max 0.25 V at 10 mA collector current

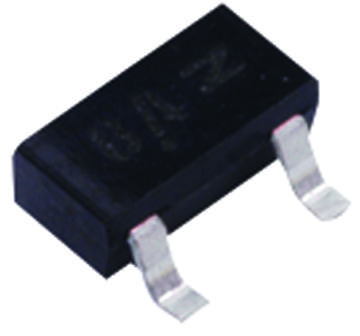

Buy the Buy ON Semiconductor MUN2233T1G Part Number MUN2233T1G Online
Purchase the ON Semiconductor MUN2233T1G digital transistor online now to streamline your circuit design. Featuring monolithic bias networks, high reliability, and compact SOT-23 packaging, this device reduces component count and saves space. Ideal for automotive, automation, and switching applications, it offers a collector-base voltage of 50 V, a collector current of 100 mA, and conforms to AEC-Q101 standards. Enjoy fast switching, excellent thermal performance, and RoHS compliance, ensuring quality and durability in demanding environments.
Order your ON Semiconductor MUN2233T1G series high-gain digital transistor today and enhance your automotive and industrial projects with reliable switching performance.
