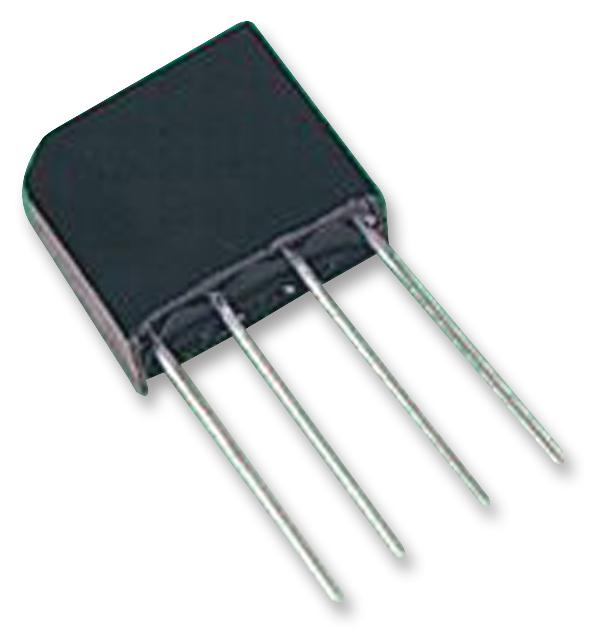

ONSEMI GBU8D Bridge Rectifier
This bridge rectifier features a glass-passivated junction and a surge overload rating of 200 A peak. Its reliable low-cost construction utilizes molded plastic, making it ideal for printed circuit boards and power supply applications. UL certified with part number GBU8D, it supports maximum repetitive reverse voltages up to 400 V and RMS bridge input voltages up to 280 V. The device efficiently handles average forward currents of 8 A, with a maximum junction temperature of 150°C, ensuring dependable operation in various electronic circuits.
ONSEMI GBU8D Bridge Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 50V to 1000V depending on model
- Maximum RMS Bridge Input Voltage: 35V to 560V depending on model
- Average Rectified Forward Current: 8A
- Peak Forward Surge Current: 200A for 8.35 ms
- Storage Temperature Range: -55°C to +150°C
- Operating Junction Temperature: -55°C to +150°C
- Power Dissipation: 16W
- Thermal Resistance Junction to Ambient: 18°C/W
- Thermal Resistance Junction to Case: 3°C/W
Buy the Fairchild Series Bridge Rectifier: GBU8D
Purchase the Fairchild GBU8D bridge rectifier online today to ensure high efficiency and reliable performance in your power supply projects. This UL certified device offers a surge overload rating of 200A, supporting maximum reverse voltages up to 400V. Its glass-passivated junction and molded plastic construction make it suitable for PCB mounting and power applications. With a maximum average forward current of 8A and excellent thermal stability, it guarantees durability and consistent operation, making it an essential component for dependable electronic systems.
Buy Fairchild GBU8D now and experience unmatched reliability and performance in power rectification for your circuits.
Frequently Asked Questions
Where can I buy ONSEMI GBU8D?
You can click on the BUY or RFQ button to purchase GBU8D from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part GBU8D?
You can download the GBU8D datasheet or visit the ONSEMI website for support.
Who is the manufacturer of GBU8D?
ONSEMI
