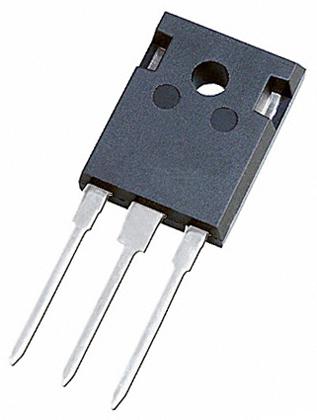

ONSEMI HUF75852G3 High-Current Power MOSFET
The HUF75852G3 is an N-Channel UltraFET Power MOSFET designed for high current switching applications. It features a voltage rating of 150 V and a continuous drain current of 75 A, making it suitable for power supply, motor control, and inverter circuits. The device exhibits a low on-resistance of 0.0169 Ω at Vgs = 10V, ensuring efficient operation. Packaged in JEDEC TO-247 casing, it supports robust high-temperature performance up to 175°C and can dissipate up to 2.0 W. The HUF75852G3 is ideal for demanding power electronics requiring high reliability, fast switching, and thermal stability.
ONSEMI HUF75852G3 High-Current Power MOSFET Specifications:
- Drain to Source Voltage: 150 V
- Drain to Gate Voltage: 150 V
- Gate to Source Voltage: ±420 V
- Continuous Drain Current: 75 A at Tc = 25°C and 100°C
- Pulsed Drain Current: Refer to datasheet
- Power Dissipation: 2.0 W, Derate at 2.2 W/°C above 25°C
- Operating and Storage Temperature: -55°C to 175°C
- Maximum Soldering Temperature: 300°C for 10 s
- On-Resistance (Vgs = 10 V): 0.0169 Ω
- Thermal Resistance Junction to Case: 0.30 °C/W
- Thermal Resistance Junction to Ambient: 30 °C/W
- Switching Times (Rise/Fall): Approximately 151 ns / 107 ns
- Gate Charge (Vgs = 10 V): About 215-260 nC
- Capacitance (Vds = 25 V, f=1 MHz): Ciss ~7690 pF, Crss ~535 pF
- Diode Voltage (IS = 75 A): 1.25 V
- Reverse Recovery Time: 260 ns
Buy the Fairchild Series UltraFET Power MOSFET: HUF75852G3
Purchase the Fairchild HUF75852G3 online today to ensure your projects benefit from high efficiency, rapid switching, and robust thermal performance. This N-channel UltraFET Power MOSFET delivers 150 V and 75 A, perfect for demanding power supply, motor control, and inverter systems. With low on-resistance of 0.0169 Ω and a durable TO-247 package, it guarantees reliable operation across a wide temperature range up to 175°C. Order now for fast delivery and elevate your power electronics solutions with proven quality and performance.
Buy Fairchild HUF75852G3 now and experience unmatched reliability and performance in high-current switching applications.
Frequently Asked Questions
Where can I buy ONSEMI HUF75852G3?
You can click on the BUY or RFQ button to purchase HUF75852G3 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part HUF75852G3?
You can download the HUF75852G3 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of HUF75852G3?
ONSEMI
