ONSEMI NC7NZ04K8X Triple Logic Inverter
The NC7NZ04 is a triple inverter from Fairchild’s Ultra-High Speed TinyLogic series, fabricated with advanced CMOS technology. It achieves exceptional switching speeds of 2.4ns into 50pF at 5V Vcc while maintaining low power consumption. Designed with a broad operating range of 1.65V to 5.5V, it features high drive output of +24mA at 3V, over-voltage tolerance inputs, and noise/EMI reduction circuitry. Packaged as Space-Saving MicroPak™ and US8 surface mount options, it is ideal for high-speed digital logic applications requiring compact form factors and reliable performance.
ONSEMI NC7NZ04K8X Triple Logic Inverter Specifications:
- Ultra-High Speed: 2.4ns (Typical) into 50pF at 5V Vcc
- High Output Drive: +24mA at 3V Vcc
- Operating Voltage Range: 1.65V to 5.5V
- Input Voltage Tolerance: up to 7V
- Supply Voltage: 1.65V to 5.5V
- Power Dissipation: 250 mW at +85°C
- Storage Temperature Range: -65°C to +150°C
- Operating Temperature: -40°C to +85°C
- Pin Package Options: MicroPak™ (1.6mm, 8-Lead) and US8 Surface Mount (3.1mm, 8-Lead)
- Input/Output Impedance: High when Vcc is 0V
- Input Rise and Fall Times: 0 to 10 ns/V
- Over-Voltage Tolerance Inputs facilitate 5V to 3V translation
- Junction Temperature: +150°C
- ESD Tolerance: 4000V (Human Body Model)

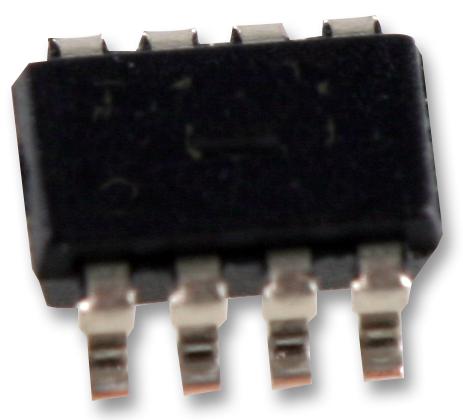

Buy the Buy ON Semiconductor NC7NZ04K8X Part Number NC7NZ04 Online
Order the ON Semiconductor NC7NZ04K8X triple inverter online today. Designed with advanced CMOS technology, it delivers high-speed switching of 2.4ns, high output drive, and broad voltage compatibility from 1.65V to 5.5V. The MicroPak™ and US8 packages make it ideal for space-constrained digital circuits, offering robust performance and low power consumption. Perfect for designers seeking reliable, high-speed logic solutions in compact form factors, ensuring easy integration into high-speed digital systems.
Get ON Semiconductor NC7NZ04K8X today—built for ultra-high speed logic operation, compact design, and reliable high drive performance.
Frequently Asked Questions
Where can I buy ONSEMI NC7NZ04K8X?
You can click on the BUY or RFQ button to purchase NC7NZ04K8X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NC7NZ04K8X?
You can download the NC7NZ04K8X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NC7NZ04K8X?
ONSEMI
