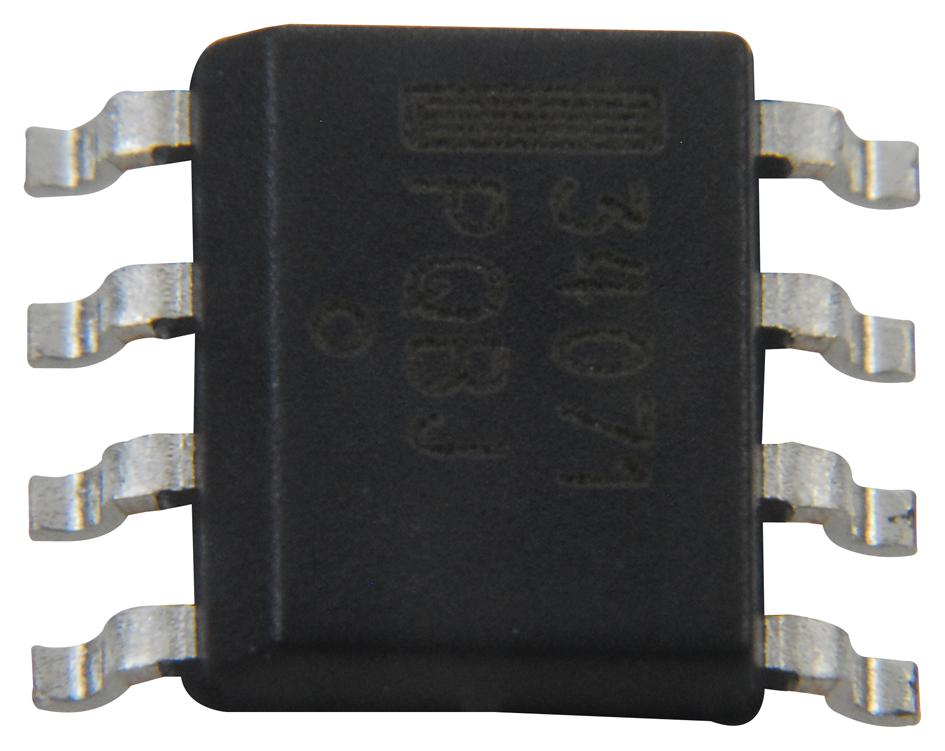

ONSEMI MC34071DG High-Speed Operational Amplifier
The MC34071DG is a monolithic single operational amplifier featuring a gain bandwidth product of 4.5 MHz, a slew rate of 13 V/μs, and fast settling time without JFET technology. It is optimized for single supply operation, accommodating input voltages that include ground potential due to its common-mode input voltage range. Equipped with a Darlington input stage, it exhibits high input resistance, low input offset voltage, and high gain. Its all NPN output stage ensures no crossover distortion, large output voltage swing, high output capacitance drive capability up to 10,000 pF, low total harmonic distortion (0.02%), and excellent stability with 60° phase margin and 12 dB gain margin. Additional features include output short-circuit protection and fast settling time of 1.1 μs to 0.1%. It is suitable for applications in automotive, sensing and instrumentation, automation and process control, as well as general industrial and commercial environments.
ONSEMI MC34071DG High-Speed Operational Amplifier Specifications:
- Gain Bandwidth Product: 4.5 MHz
- Slew Rate: 13 V/μs
- Settling Time: 1.1 μs to 0.1%
- Input Offset Voltage: 3.0 mV Max
- Input Resistance: High due to Darlington input stage
- Output Voltage Swing: -14.7 V to +14 V with +15 V supplies
- Output Capacitance Drive Capability: Up to 10,000 pF
- Output Short-Circuit Protection
- Operating Voltage Range: 3.0 V to 44 V single supply
- Phase Margin: 60°
- Gain Margin: 12 dB
- Total Harmonic Distortion: 0.02%
- Package Options: PDIP-8, SOIC-8, TSSOP-14, WQFN-10
- Temperature Range: Commercial, Industrial, Vehicular, Military
Buy the ON Semiconductor MC34071DG – Reliable High-Speed Amplifier for Industrial Applications
Order the high-performance operational amplifier online today. The MC34071DG offers a gain bandwidth of 4.5 MHz, a slew rate of 13 V/μs, and rapid settling times to meet demanding industrial, sensing, and automation needs. Designed for single supply operation, it features low input offset voltage, high output swing capability up to 14 V, and a robust all NPN output stage ensuring no crossover distortion. Its versatility, low harmonic distortion, and package options make it ideal for engineers seeking reliable, high-speed precision in complex electronic systems.
Get ON Semiconductor MC34071DG today—built for precision, high speed, and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy ONSEMI MC34071DG?
You can click on the BUY or RFQ button to purchase MC34071DG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC34071DG?
You can download the MC34071DG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC34071DG?
ONSEMI
