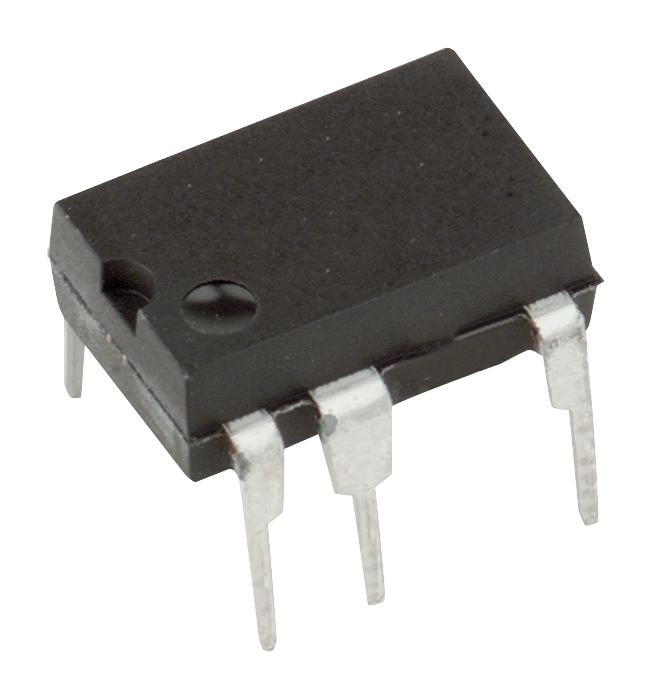

ONSEMI NCP1077BBP130G Power Switcher
The NCP1077BBP130G is an advanced off-line switcher designed for robust and highly efficient power supplies. It features a built-in 700 V MOSFET, frequency jittering for EMI reduction, skip-cycle mode for light loads, and comprehensive protection including over-voltage, over-current, and short-circuit detection. Its high level of integration enables compact and reliable power solutions, ideal for home appliances, industrial power supplies, and SMPS applications. The device offers excellent efficiency across load conditions with a soft-start feature and stable operation over a wide input voltage range.
ONSEMI NCP1077BBP130G Power Switcher Specifications:
- Power supply voltage: 80 V to 89 V (start), 65 V to 73 V (stop), 61 V to 69 V (UVLO)
- Maximum drain voltage: 700 V
- Peak drain current during saturation: 15 A at 25°C, 36 A at 125°C for NCP1079UZ
- Switching frequency: 65, 100, 130 kHz (selectable)
- Built-in 700 V MOSFET with Rps(on): 13.5 mΩ (NCP1075UZ), 4.8 mΩ (NCP1076UZ/77UZ), 2.9 mΩ (NCP1079UZ)
- Power dissipation capacity: approx. 1300 mW at 50°C ambient with 200 mm² copper area
- Thermal resistance junction-to-air: 0.36°C/W for PDIP-7 package
- Shutdown temperature: 150°C, hysteresis 2°C
- ESD protection: 2 kV (HBM), 1 kV (CDM), 200 V (MM)
Buy the ON Semiconductor NCP1077BBP130G – Reliable Power Switcher for Industrial Applications
Get your ON Semiconductor NCP1077BBP130G now online to harness its robust 700 V MOSFET, advanced protection features, and frequency jittering for EMI reduction. Perfect for efficient, reliable industrial power supplies, this device simplifies design with integrated circuitry, high temperature operation up to 150°C, and a soft-start feature ensuring minimal startup overshoot. Its compact design and superior thermal management make it an ideal choice for home appliances, industrial SMPS, and high-performance power systems. Buy online today and elevate your power solutions with confidence and quality.
Order your ON Semiconductor NCP1077BBP130G today and secure a high-performance switching solution with superior protection and efficiency for your industrial power supplies.
Frequently Asked Questions
Where can I buy ONSEMI NCP1077BBP130G?
You can click on the BUY or RFQ button to purchase NCP1077BBP130G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP1077BBP130G?
You can download the NCP1077BBP130G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP1077BBP130G?
ONSEMI
