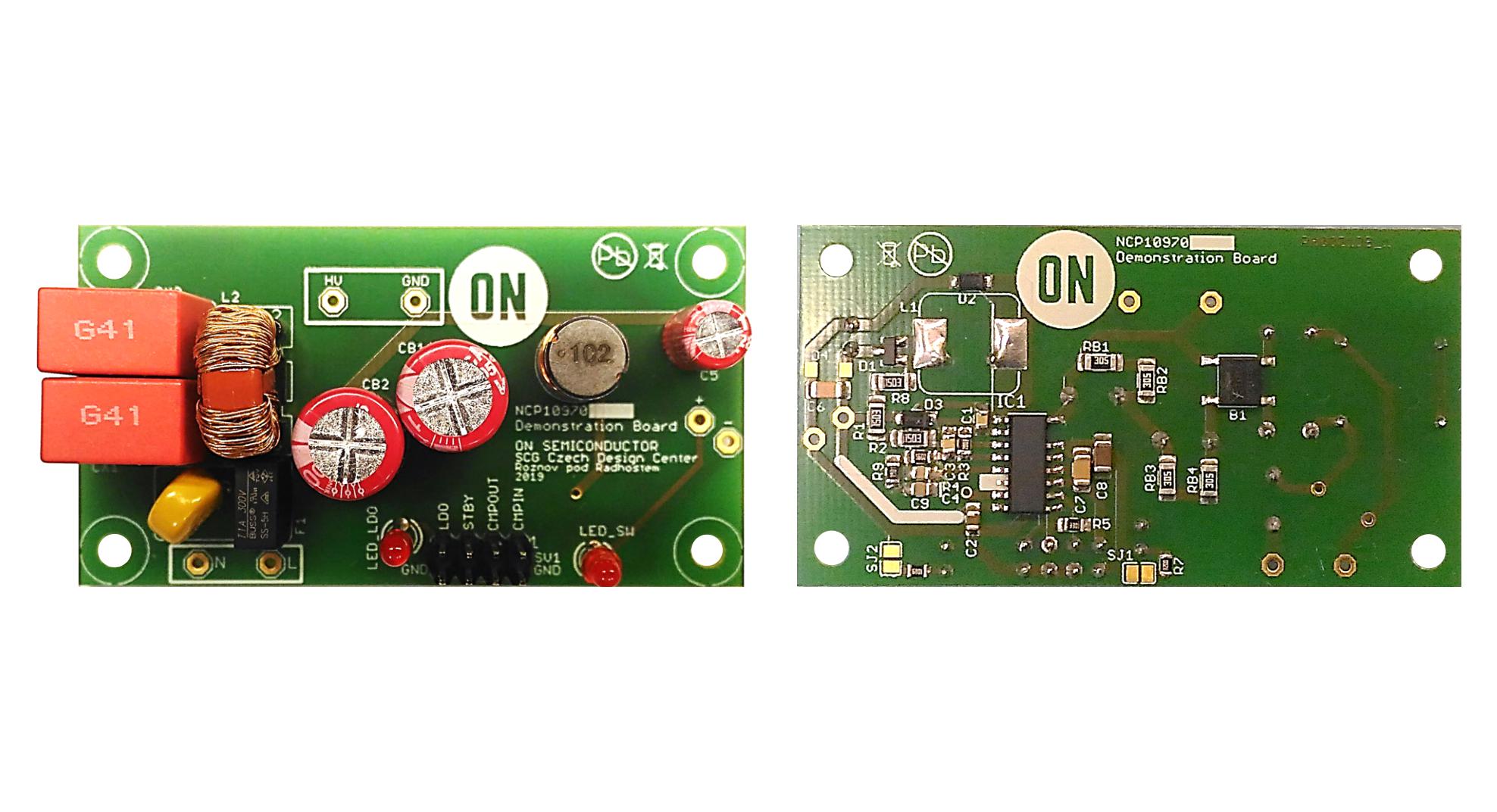

ONSEMI NCP10970BGEVB Power Management Evaluation Board
The NCP10970BGEVB evaluation board is a high-voltage input power management system featuring a non-isolated buck converter with adjustable output up to 16 V and a fixed 5 V LDO. Designed for wide input ranges from ~30 Vrms up to 440 V rms, this board supports DC input up to 620 V, delivering a total of 150 mA. It uses a SOIC-16 power IC, offering high efficiency, low EMI, and protections against over-current, over-voltage, and thermal faults. Suitable for smart devices, metering, and IoT applications, it ensures reliable power regulation in demanding environments.
ONSEMI NCP10970BGEVB Power Management Evaluation Board Specifications:
- Input Voltage Range: ~30 Vrms to 440 Vrms; supports DC up to 620 V
- Output Voltage: Adjustable up to 16 V, fixed 5 V LDO
- Output Current: 150 mA total (split between switcher and LDO)
- Switcher IC: SOIC-16, operates in DCM mode for efficiency
- Protection Features: Over-current, over-voltage, thermal shutdown, surge and EMI filtering
- Efficiency: High, with no-load power around 30-40 mW at 115 V and 230 V respectively
- Board Dimensions: 68 x 37 mm
- Cooling: Passive cooling design with multilayer PCB construction
- Application: IoT devices, smart energy meters, industrial power supplies
- Features: Wide input, high efficiency, integrated comparator, skip mode for light-load efficiency
Buy the Buy ON Semiconductor NCP10970BGEVB Part Number NCP10970BGEVB Online
Purchase the ON Semiconductor NCP10970BGEVB evaluation board online today to access a high-voltage, multi-output power management solution. This versatile board features adjustable 16 V regulation and a fixed 5 V LDO ideal for IoT applications, smart meters, and industrial controls. Built for wide input voltage ranges, it ensures high efficiency, robust protections, and low EMI emissions. Easy to integrate and designed for research and development, this board gives engineers a reliable platform for testing and deploying advanced power solutions efficiently.
Buy ON Semiconductor NCP10970BGEVB now and experience unmatched reliability, high voltage handling, and efficient power regulation for your projects.
