ONSEMI NCP135BMT040TBG Voltage Regulator
The NCP135 is a highly efficient, 500 mA VLDO regulator featuring an NMOS pass transistor and separate bias supply, delivering stable, low noise output suited for space-constrained, noise-sensitive, battery-powered applications like smartphones, tablets, and cameras. It offers ultra-low dropout at typical 53 mV, low bias input current of 35 μA, and is stable with ceramic capacitors from 10 to 22 μF. Designed with thermal shutdown and undervoltage lockout, it ensures reliable operation in a compact WDFN6 2x2 mm package, ideal for portable electronic devices requiring precise voltage regulation.
ONSEMI NCP135BMT040TBG Voltage Regulator Specifications:
- Input Voltage Range: 0.4 V to 5.5 V
- Bias Voltage Range: 2.5 V to 5.5 V
- Fixed Output Voltage: 0.4 V
- Output Current Capacity: 500 mA
- Dropout Voltage: Typ. 53 mV at 500 mA
- Quiescent Bias Current: Typ. 35 μA
- Output Voltage Accuracy: ±0.5% at 25°C, ±1% over temperature
- Line Regulation: 0.01% IV at Vin > 2.7 V
- Load Regulation: 0.5 mV from 1 mA to 500 mA
- Thermal Shutdown Temperature: 160°C

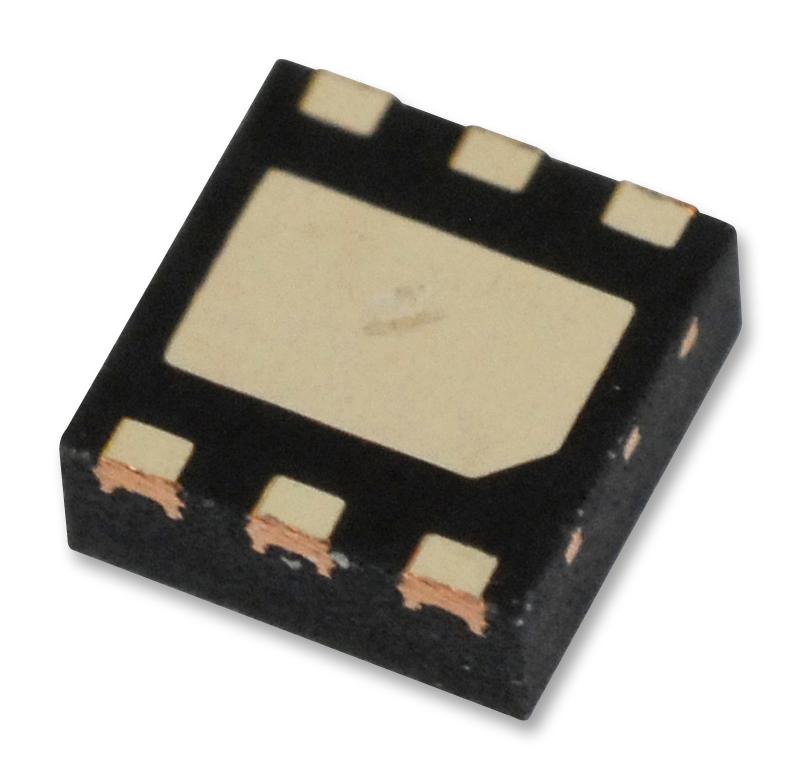

- Package: WDFN6 2x2 mm
- ESD Rating: 2000 V (HBM), 200 V (MM)
- Enabled with hysteresis, stable with ceramic capacitors, thermal protection built-in
- Output Active Discharge: Available in NCP135A options
- Isolation voltage: Vout stable with low ripple and noise
- Operating Temperature Range: -40°C to +125°C
Buy the ON Semiconductor NCP135 – Reliable VLDO for Industrial Applications
Purchase the ON Semiconductor NCP135 voltage regulator online for your portable, noise-sensitive electronic devices. With its ultra-low dropout, high stability, and thermal shutdown features, it ensures reliable power delivery for smartphones, tablets, and cameras. Its compact WDFN6 2x2 mm package allows easy integration into space-constrained designs. Designed with low bias current and excellent line and load regulation, it provides precise output voltage of 0.4 V for battery-powered applications, making it an ideal choice for engineers seeking durability and performance in mission-critical projects.
Get ON Semiconductor NCP135 today—built for precision and long-lasting durability in portable electronics and low-noise applications.
Frequently Asked Questions
Where can I buy ONSEMI NCP135BMT040TBG?
You can click on the BUY or RFQ button to purchase NCP135BMT040TBG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP135BMT040TBG?
You can download the NCP135BMT040TBG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP135BMT040TBG?
ONSEMI
