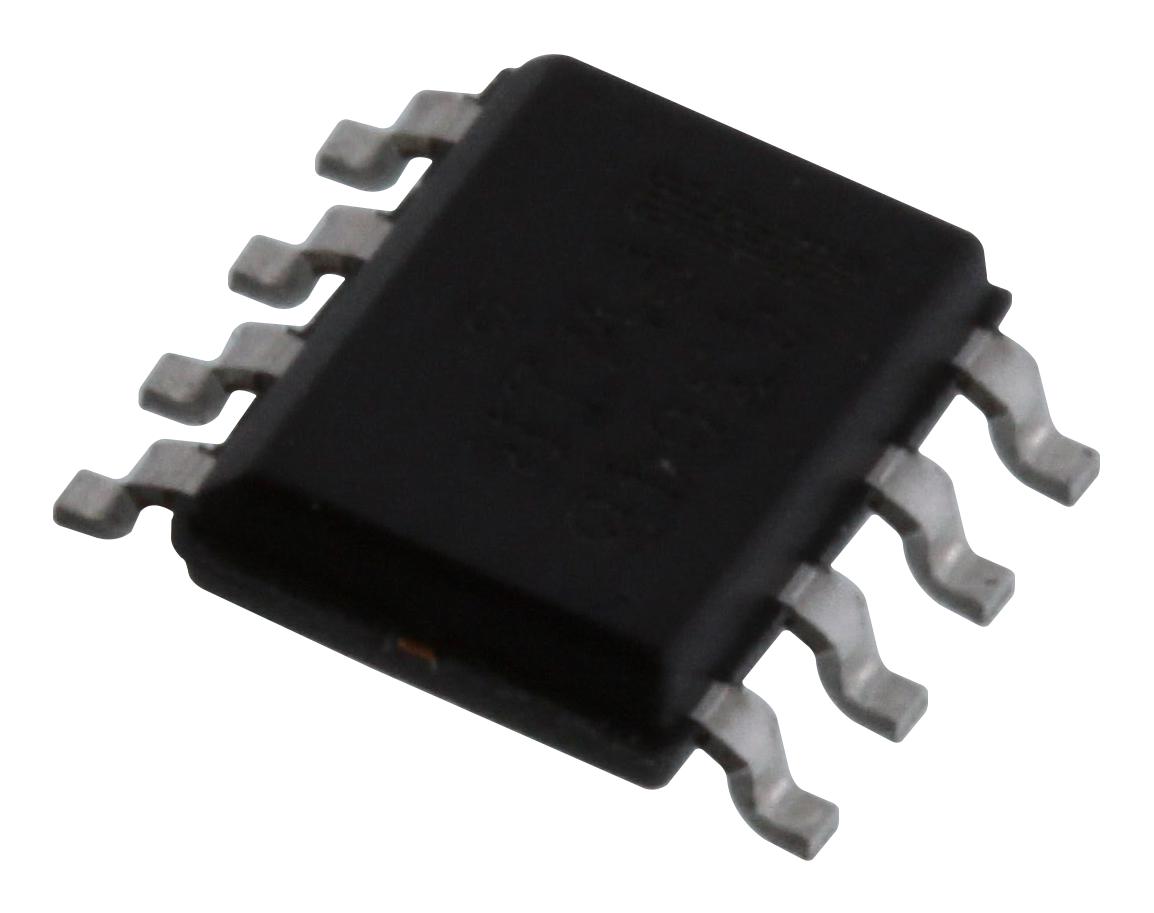

ONSEMI NCP4304BDR2G Voltage Regulator
The NCP4304BDR2G is an ultra-low dropout linear voltage regulator capable of delivering up to 500 mA with high accuracy and low noise, ideal for automotive, industrial, and consumer applications. It features a wide input voltage range, thermal shutdown, short circuit protection, and enable control for flexible operation. Its stable design supports low-cost ceramic capacitors, ensuring reliable power regulation in demanding environments, including extended temperature ranges suitable for automotive and PPAP-capable applications.
ONSEMI NCP4304BDR2G Voltage Regulator Specifications:
- Output Current: Up to 500 mA
- Input Voltage Range: -0.3 V to +18 V
- Output Voltage Accuracy: Better than 3%
- Dropout Voltage: 230 mV at 500 mA
- Thermal Shutdown: Yes, occurs above 150°C
- Short Circuit Protection: Yes
- Enable Control: Yes, with high and low states
- Operating Temperatures: -40°C to +125°C for NCV versions, -40°C to +85°C for NCP versions
- Package Types: DPAK, SOIC-8
- Compliance: Pb-Free, AEC-Q100 qualified for automotive applications
- Ripple Rejection: 70 dB at 1 kHz
- Noise Voltage: 18 µV at 10 Hz to 100 kHz
- Reverse Bias Protection: Yes
- Material: Pb-Free devices
- Protection Features: Short circuit, thermal shutdown
Buy the ON Semiconductor Series Voltage Regulator: NCP4304BDR2G
Experience superior power stability with the ON Semiconductor NCP4304BDR2G voltage regulator. Delivering up to 500 mA with high accuracy, low noise, and thermal protection, it is designed for automotive, industrial, and consumer electronic applications. Its stable operation with ceramic capacitors, enable control feature, and wide input voltage range ensures seamless integration into complex systems. Ideal for applications requiring extended temperature operation and PPAP capability, this regulator provides dependable power with compact packaging options including DPAK and SOIC-8, ensuring performance and reliability in critical environments.
Buy ON Semiconductor NCP4304BDR2G now and experience unmatched reliability and high-precision power regulation for demanding automotive, industrial, and consumer applications.
Frequently Asked Questions
Where can I buy ONSEMI NCP4304BDR2G?
You can click on the BUY or RFQ button to purchase NCP4304BDR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP4304BDR2G?
You can download the NCP4304BDR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP4304BDR2G?
ONSEMI
