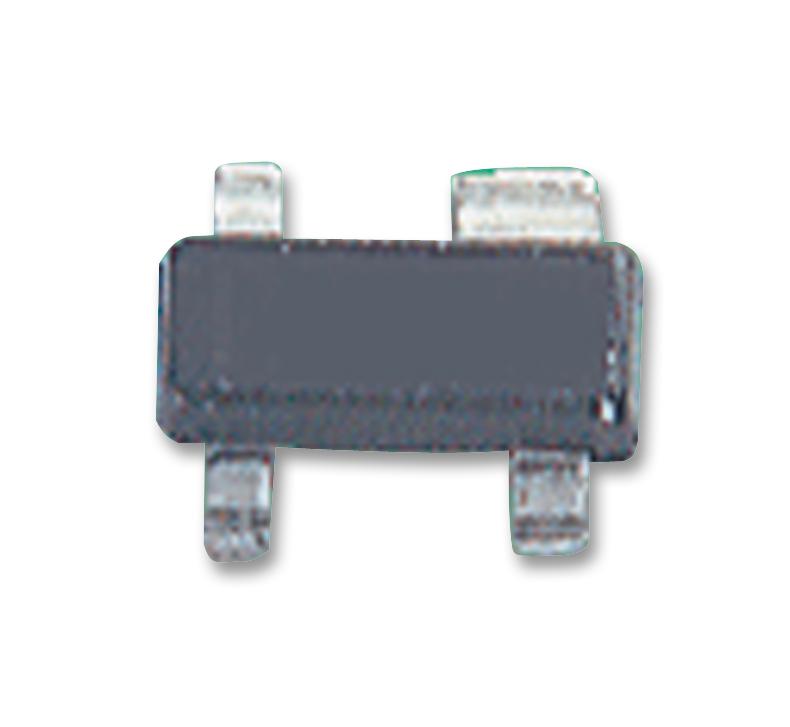

ONSEMI CAT811LTBIGT3 Power Supply Supervisor
The CAT811 is a compact 4-pin microprocessor power supply supervisor designed for industrial applications. It monitors the supply voltage, providing an active LOW reset signal when voltage drops below preset thresholds such as +5.0 V, +3.3 V, +3.0 V, or +2.5 V. Featuring a manual reset input and guaranteed reset active from 1.0 V Vcc, it offers high transient immunity, low supply current of 6–20 µA, and operation across -40°C to +85°C. Its small SOT-143 package makes it suitable for embedded control, communication systems, and power management modules.
ONSEMI CAT811LTBIGT3 Power Supply Supervisor Specifications:
- Supply Voltage Range: 1.0 V to 55 V
- Reset Threshold Voltage: 4.63 V, 4.38 V, 4.00 V, 3.08 V, 2.93 V, 2.63 V, 2.32 V depending on version
- Reset Active Duration: minimum 140 ms after voltage rises above threshold
- Input Current: 20 mA maximum per pin
- Output Voltage Low (Reset): < 0.4 V at 1.2 mA sink
- Output Voltage High (Reset): > Vcc - 1.5 V at 0.8 mA source
- Power Dissipation: 320 mW maximum, derate 4 mW/°C above 70°C
- Operating Temperature Range: -40°C to +85°C
- Package: SOT-143, 4-pin
- Qualification: RoHS, Pb-Free, Halogen and BFR Free, JEDEC compliant
- Power-up Reset Timeout: approximately 140 ms
- Transient Immunity: approximately 4 µs to 100 mV transient pulses
- Manual Reset Input: active LOW, with internal 20 kΩ pull-up resistor
- Supply Current: 6–20 µA depending on version and load
- Certifications: RoHS compliant, halogen free
