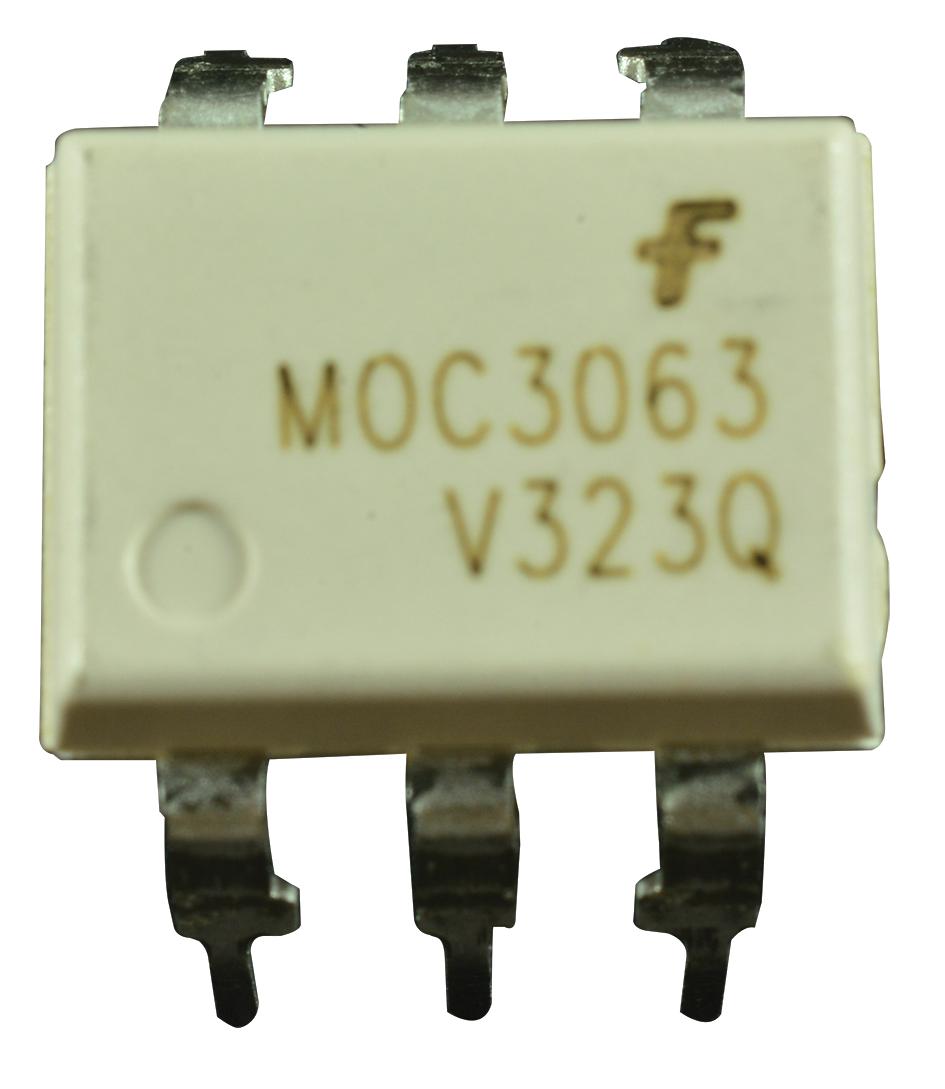

ONSEMI MOC3063TVM Triac Driver Optocoupler
The MOC3063TVM is a 6-pin TRIAC driver optocoupler featuring a gallium arsenide infrared LED coupled with a silicon detector, designed for zero-voltage crossing applications. It interfaces logic systems with high-voltage AC equipment, minimizing electrical noise with high dv/dt of 600 V/μs and providing robust electrical isolation with a working voltage of 850V. Suitable for industrial controls, motor drives, lighting, and power management, it ensures safety and reliable operation in 115/240VAC power systems, with a maximum dielectric withstand voltage of 850V and overvoltage capability up to 6000V.
ONSEMI MOC3063TVM Triac Driver Optocoupler Specifications:
- Maximum Working Insulation Voltage: 850 Vpeak
- Isolation Resistance: > 10^9 Ω at 500 V
- Isolation Capacitance: 0.2 pF
- Peak Blocking Current: 10-500 A (MOC306XM), 10-100 A (MOC316XM)
- Peak Non-Repetitive Surge Current: 1 A
- Input Forward Voltage: 1.3 - 1.5 V at 30 mA
- Input Reverse Leakage Current: 0.005 μA at 6 V
- Peak On-State Voltage: 18 - 30 V
- Trigger Current: 5 - 15 mA depending on model
- Max Junction Temperature: 100°C
- Storage Temperature Range: -40°C to +150°C
- Operating Temperature Range: -40°C to +85°C
- Power Dissipation: 250 mW (device), 120 mW (LED), 150 mW (detector)
- Dielectric Withstanding Voltage: 6000 Vpeak
- Climatic Classification: 40/85/21
- Pollution Degree: 2
- External Creepage and Clearance: 27 mm
- Reflow Profile Max. Peak Temperature: 260°C
Buy the Fairchild Series TRIAC Driver: MOC3063TVM
Purchase the Fairchild MOC3063TVM online now and leverage its superior zero-voltage crossing technology and high dielectric insulation for safe, reliable high-voltage AC control. Perfect for industrial automation, motor drives, lighting, and power regulation, this 6-pin device offers high dv/dt of 600 V/μs and a maximum insulation voltage of 850V, ensuring enhanced safety, reduced electrical noise, and robust performance. Order today for fast delivery and seamless integration into your high-voltage control systems.
Buy Fairchild MOC3063TVM now and experience unmatched reliability and performance in high-voltage AC switching. Perfect for industrial, lighting, and motor control applications, this optocoupler ensures safe and efficient operation with high dielectric isolation and low noise. Enhance your system’s safety and efficiency by purchasing this high-quality TRIAC driver today for robust power management in 115/240VAC environments.
Frequently Asked Questions
Where can I buy ONSEMI MOC3063TVM?
You can click on the BUY or RFQ button to purchase MOC3063TVM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3063TVM?
You can download the MOC3063TVM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3063TVM?
ONSEMI
