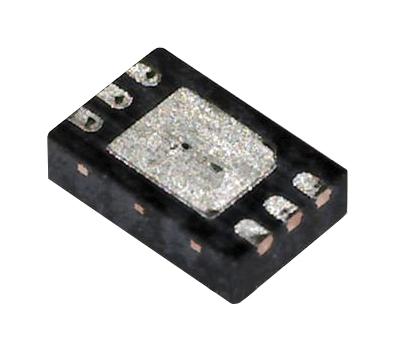

ONSEMI NCP730BMTADJTBG Low Dropout Regulator
The NCP730 is a low dropout (LDO) voltage regulator capable of delivering up to 150 mA with an input voltage range of 2.7 V to 38 V. It features ultra-low quiescent current of approximately 1 μA, making it suitable for battery-powered and always-on systems. The device offers adjustable or fixed output voltages from 1.2 V to 24 V, with high output voltage accuracy of ±1%. Internal protections include over-current, thermal shutdown, short circuit, and built-in power good circuit in the B version. Its small package sizes (TSOP-5 and WDFN-6) and stable operation with small ceramic capacitors enhance its application versatility in electronic devices, automation, RF, metering, and white goods.
ONSEMI NCP730BMTADJTBG Low Dropout Regulator Specifications:
- Operating Input Voltage Range: 2.7 V to 38 V
- Output Voltage: 1.2 V to 24 V
- Maximum Output Current: 150 mA
- Peak Output Current: 200 mA
- Quiescent Current: ~1 μA
- Shutdown Current: approximately 100 nA
- Dropout Voltage at 150 mA: approximately 290 mV
- Output Voltage Accuracy: ±1%
- Package Types: TSOP-5 and WDFN-6 (2x2)
- Protections: Over-current, thermal shutdown, short circuit
- Power Good Output: Yes, with delay and hysteresis in version B
- Thermal Resistance (Junction-to-Air): 61°C/W (WDFN-6), 142°C/W (TSOP-5)
- ESD Protection: Human Body Model 2000 V, Charged Device 1000 V
- Temperature Range: -55°C to +150°C
- Shelf Storage: -55°C to +150°C
Buy the ON Semiconductor Series Low Dropout Regulator: NCP730BMTADJTBG
Explore the efficient and compact ON Semiconductor NCP730BMTADJTBG LDO regulator, capable of delivering up to 150 mA with ultra-low quiescent current. Ideal for battery-powered applications, it features high input voltage range, adjustable or fixed outputs, integrated protections, and small package sizes. Designed for stable operation with ceramic capacitors, this device protects against overloads and temperature extremes, making it suitable for automation, RF devices, metering, and consumer electronics. Purchase online today for reliable, high-performance voltage regulation in your device designs.
Buy ON Semiconductor NCP730BMTADJTBG now and experience unmatched reliability and high efficiency in low dropout voltage regulation for your electronics projects.
Frequently Asked Questions
Where can I buy ONSEMI NCP730BMTADJTBG?
You can click on the BUY or RFQ button to purchase NCP730BMTADJTBG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP730BMTADJTBG?
You can download the NCP730BMTADJTBG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP730BMTADJTBG?
ONSEMI
