ONSEMI NL27WZ02USG Dual NOR Gate
The NL27WZ02 is a high performance, dual 2-input NOR gate designed for operation from 1.65 V to 5.5 V supply voltage. It features extremely high speed with typical propagation delay of 2.5 ns at 5.0 V, overvoltage tolerant inputs, and compatibility with LVTTL and LVCMOS logic levels. The device offers balanced output sink and source capability of 24 mA, near-zero static current for power efficiency, and is suitable for low voltage digital logic design and system applications. It replaces older logic devices with enhanced performance and reliability, all in a Pb-Free, RoHS-compliant package.
ONSEMI NL27WZ02USG Dual NOR Gate Specifications:
- Supply Voltage: 1.65 V to 5.5 V
- Propagation Delay: 2.5 ns (typical at 5.0 V)
- Input Voltage Range: 0 to 5.5 V
- Output Sink/Source Capability: 24 mA
- Overvoltage Tolerance: yes
- Logic Compatibility: LVTTL and LVCMOS
- Power Dissipation: minimal static current
- Operating Temperature Range: -55°C to +125°C
- Maximum Power Dissipation: 250 mW at 85°C
- RoHS Compliant and Pb-Free
- Package Type: US Surface Mount, Tape & Reel
- Junction Temperature: up to 150°C
- ESD Withstand Voltage: >2000 V (HBM)

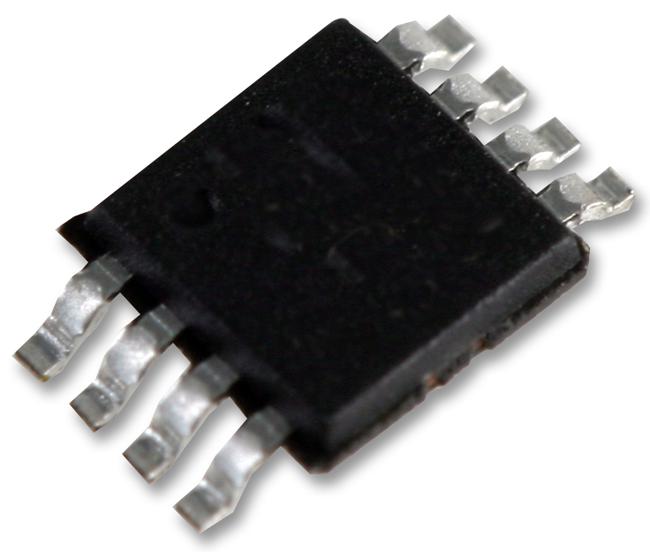

Buy the Buy ON Semiconductor NL27WZ02 Part Number NL27WZ02USG Online
Order the ON Semiconductor NL27WZ02 dual 2-input NOR gate now for reliable, high-speed digital logic performance. This device features overvoltage tolerant inputs, LVTTL and LVCMOS compatibility, and a low static power consumption, making it perfect for compact and power-efficient systems. Suitable for a variety of applications including digital circuits, logic interfaces, and control systems. With its Pb-Free RoHS-compliant packaging and high temperature tolerance, the NL27WZ02 ensures durability and efficiency for today's advanced electronic designs. Purchase online today for quick delivery and optimal system integration.
Get ON Semiconductor NL27WZ02 today—built for high-speed digital logic, low power operation, and overvoltage tolerant inputs, ideal for precision electronic designs.
Frequently Asked Questions
Where can I buy ONSEMI NL27WZ02USG?
You can click on the BUY or RFQ button to purchase NL27WZ02USG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NL27WZ02USG?
You can download the NL27WZ02USG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NL27WZ02USG?
ONSEMI
