ONSEMI NLASB3157MTR2G CMOS Analog Switch
The NLASB3157 is a high-speed CMOS analog switch designed for digital and analog signal routing with low propagation delay and RDSon resistance. It features overvoltage protection on the select pin, allowing voltages up to 7.0 V without damage. Suitable for high bandwidth, video, audio, HDTV, clock switching, and data multiplexing, it operates over a wide temperature range from -55°C to +125°C, with Pb-Free options available. This device ensures minimal power dissipation, fast switching times, and supports balanced signal switching at high data rates, making it ideal for automotive, industrial, and communication systems.
ONSEMI NLASB3157MTR2G CMOS Analog Switch Specifications:
- Supply Voltage: 1.65V to 55V, maximum 7.0V on select pin
- Switching Time: Propagation delay approximately 1.65-1.95 ns (Typ) at Vcc=5V
- On Resistance: 3.0-7.0 Ω (varies with voltage and temperature), matching within 0.15 Ω
- Temperature Range: -55°C to +125°C, automotive extended version from -55°C to +125°C
- Power Dissipation: 180 mW at +85°C, low quiescent supply current
- Input Leakage Current: < 0.05 μA at Vio=5.5V
- Input Voltage: 0 to Vcc, with overvoltage protection up to 7.0 V
- Propagation Delay: 1.65-1.95 ns (typ), with break before make time of 0.5-5 ns
- Capacitance at 1 MHz: Select pin input capacitance 23 pF, off capacitance 65 pF, on capacitance 18.5 pF
- Package: SC-88 (Tiny SOP), WDFN6 (Surface Mount, 6 Pins), Pb-Free options available
- ESD performance: > 2000 V Human Body Model, > 200 V Machine Model

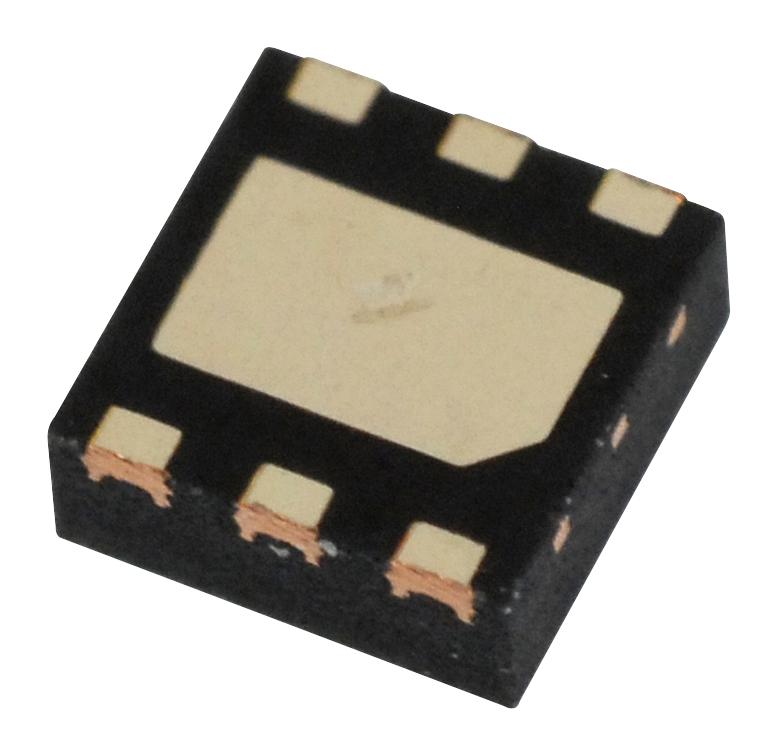

Buy the Buy ON Semiconductor NLASB3157 Part Number NLASB3157MTR2G Online
Secure your high-speed CMOS analog switch online with ON Semiconductor's NLASB3157MTR2G. This versatile device offers low RDSon, fast switching times, and overvoltage protection, making it perfect for video, audio, clock switching, and data multiplexing in industrial, automotive, and communication systems. Its extended automotive temperature range from -55°C to +125°C ensures durability under harsh conditions. Pb-Free options are available, supporting eco-friendly manufacturing. Order now to enhance your electronic designs with proven reliability and optimal performance in high-frequency signal routing.
Buy ON Semiconductor NLASB3157MTR2G now and experience unmatched reliability and high-speed switching performance for demanding applications.
