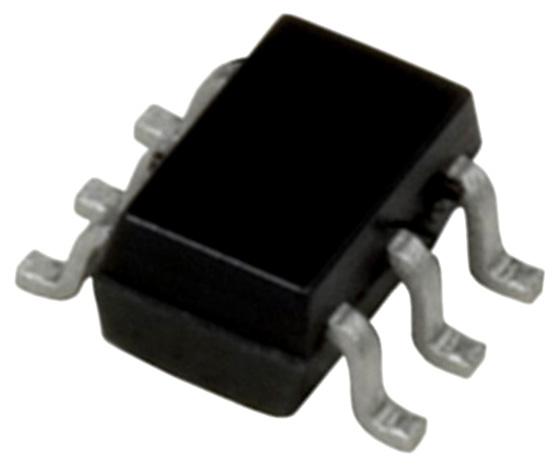

ONSEMI NUD3112DMT1G Inductive Load Driver
The NUD3112DMT1G is an inductive load driver designed to switch inductive loads such as relays, solenoids, incandescent lamps, and small DC motors without requiring an external free-wheeling diode. It integrates essential components including a MOSFET switch, ESD protection, and Zener clamps, allowing it to be easily driven by logic level signals from devices like microcontrollers, logic gates, and inverters. This device provides a robust interface between DC relay coils and sensitive logic circuits, optimized for 12V relays and capable of driving coils up to 6W at 12V. Its internal Zener diode eliminates the need for an external free-wheeling diode, while the Zener clamp safely routes induced currents to ground for quieter operation. Low Vds(on) ensures reduced system current consumption.
ONSEMI NUD3112DMT1G Inductive Load Driver Specifications:
- Maximum Drain to Source Voltage: 14 V
- Maximum Gate to Source Voltage: 6 V
- Continuous Drain Current: 500 mA
- Package Types: SOT-23 and SC-74
- Power Dissipation (SOT-23): 225 mW, Derating 18 mW/°C
- Power Dissipation (SC-74): 380 mW, Derating 3.0 mW/°C
- Junction Temperature: 150°C
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -65°C to +150°C
- Maximum Drain to Source Voltage: 14 V
- Gate to Source Voltage: ±6 V
- Switching Delay: ~24–91 ns
- On-Resistance: 0.09–0.13 Ω
- ESD Protection: 2000 V Human Body Model
- Capacitances: Ciss ~23 pF, Coss ~7 pF, Crss ~7 pF
- Designed for switching relays, solenoids, lamps, small motors, compatible with logic level signals.
