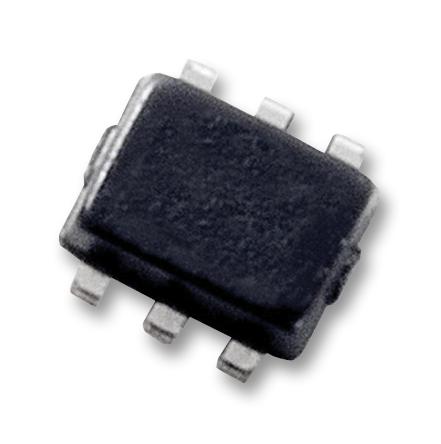

ONSEMI NSBC123JPDXV6T1G Bias Resistor Transistor
The series of complementary bias resistor transistors combines NPN and PNP devices with monolithic bias networks, including series base and emitter resistors. These integrated components simplify circuit design, reduce component count, and save board space, making them ideal for automotive and industrial applications. Qualified under AEC-Q101 standards, they are Pb-Free, Halogen and BFR Free, RoHS compliant, and support high-voltage and current ratings. Designed for reliable performance in various electronic systems, they offer efficient biasing solutions with compact packaging options like SOT-563, SOT-363, and SOT-963.
ONSEMI NSBC123JPDXV6T1G Bias Resistor Transistor Specifications:
- Collector-Base Voltage: 50 V
- Collector-Emitter Voltage: 50 V
- Collector Current: 100 mA
- Input Forward Voltage: 12 V
- Input Reverse Voltage: 5 V
- Total Device Dissipation (SOT-363): 187 mW at 25°C, Derate 1.5 mW/°C
- Thermal Resistance Junction to Ambient: 670 °C/W, max
- Junction Temperature Range: -55°C to +150°C
- Pb-Free, Halogen Free, RoHS Compliant, AEC-Q101 Qualified
- Package Options: SOT-363, SOT-563, SOT-963
- Reverse Bias Voltage: 50 V
- Breakdown Voltage: 50 V
- Power Dissipation (SOT-563): 357 mW at 25°C
- Thermal Resistance Junction to Ambient (SOT-563): 350 °C/W
- Collector-Base Breakdown: 50 V
- Collector-Emitter Breakdown: 50 V
- DC Gain: 80 to 140
- Input Resistor: 2.2 kΩ typical
